    LEFILTER long bag pulse dust collector

    Read Reviews23 Q&As Write a Review
    Long bag off-line pulse dust remover is mainly composed of upper tank, middle tank, ash hopper, air inlet flow pipe, bracket, filter bag, blowing device and unloading device, etc. The air inlet equalizing pipe of the dust collector enters i

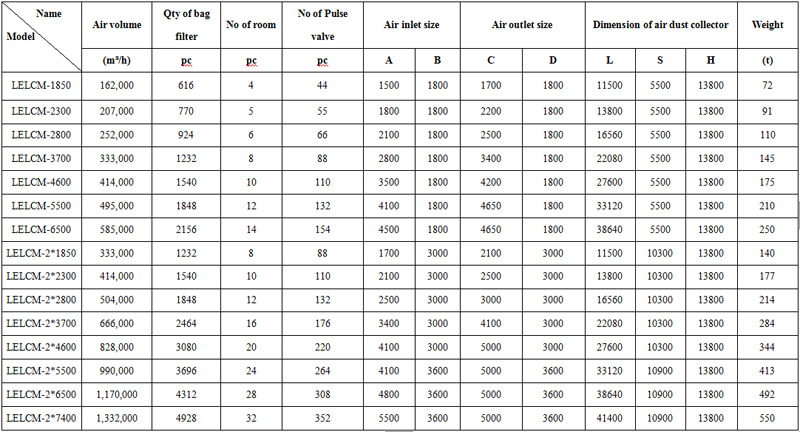

    PARAMETER

    Brand Name: LEFILTER
    Model Number: hc9600fkp13h
    Nominal filtration rating:
    Application:metallurgical industry steelmaking blast furnace, raw coal injection preparation plant, building mate
    Operating pressure:
    Working temperature:
    Replacement or not:Replacement

    Long bag off-line pulse dust remover is mainly composed of upper tank, middle tank, ash hopper, air inlet flow pipe, bracket, filter bag, blowing device and unloading device, etc. The air inlet equalizing pipe of the dust collector enters into the ash hoppers of each sub-chamber, and under the diversion of the hopper guide device, large dust particles are separated and directly fall into the ash hopper, and the fine dust is uniformly absorbed into the middle box. At the surface of the filter bag, clean air passes through the upper box and is discharged into the atmosphere through the various off-line valves and exhaust pipes. With the progress of filtration, the dust on the filter bag will accumulate more and more. When the resistance of the device reaches the defined resistance value (generally set to 1500Pa), the cleaning device will automatically close the off-line valve according to the differential pressure setting value. Afterwards, the electromagnetic pulse valve is opened according to the setting procedure to stop the air blow. The pressure in the filter bag is suddenly blown by the compressed air, and the dust on the filter bag is shaken off into the ash hopper and discharged by the dust discharging valve.
    The CLCM-D/G long bag off-line pulse dust remover integrates the longest bag off-line pulse dust removal technology currently available in the world and introduces the world-leading long bag offline pulse dust remover technology to users.

    Structure description long bag offline pulse dust collector:
    1. Compressed air line and its decompression device, oil-water separator, oil mister and so on.
    2. Shell part: including clean room (or gas purge box, air box), filter box. Chamber partitions, access doors, and shell structure. The cleaning room is provided with a poppet valve and a flower plate, and a short pipe is blown. The filter room is provided with an inlet and an outlet air duct body, which includes an inlet/outlet air duct and a middle partition.
    4. Ash hopper and unloading mechanism: There are hoppers and screw conveyors.
    5. Pulse cleaning device: including pulse valve, air bag, poppet valve and its solenoid valve.
    6. If the equipment is used for dust removal from a power plant boiler, its structure has an additional design to suit the special requirements of the user.
    7. Aisle platforms and railings: This section fully considers the ease of maintenance and guarantees safe operation.
