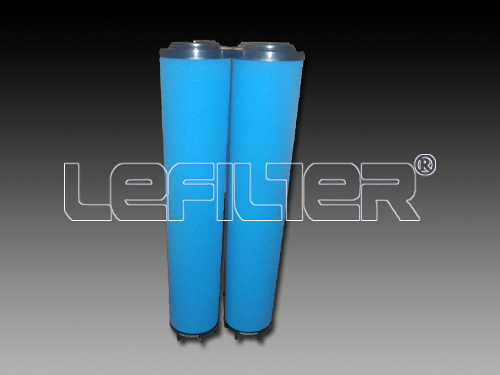

Screw Air Compressor 1613750200 Atlas oil/air separation filter cartridge：
Products details:
Brand:Atlas Type: Air filter
Function:High precision filter Material:import from USA
Production Cycle:7-10 days Service life:8months
Certificate:ISO9001 Material:Microfiber
Filter Precision: Residual Oil Component(ppm)
DD1:um 0.1
DDP:1um
PD:0.01um 0.01
QD:0.01um 0.003
Atlas filter technical description
1.Filter fineness:10-15 micron .
2.Filtration efficiency:98.8%.
3.Service life is approximately:2000h.
4.Filter element of oil filter is made by the thin fiberglass,which imported from HV&Ahistrom company.
5.Filter element of oil separator is made by imported fiberglass. haze air oil mixture in compressed air would be almost filtered completed when go through the filter element.
6.The quality of lubricant and environment have great influence on filter ,service life of oil filter element is approximately 2000h
Test standard:
1.resistance to rupture of filter element as per ISO 2941
2.structural integrity of filter element as per ISO 2942
3.compatibility of filter element as per ISO 2943
4.filter filtrability as per ISO 4572
5.test of flow - differential pressure specility as per ISO 3968
