Brand Name:
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

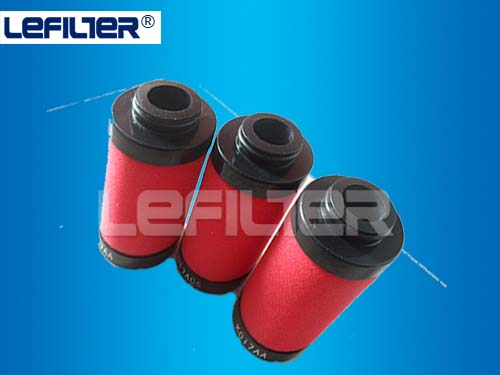

1.domnick hunter element k017acs is mainly used for filtering out the
impurities in the air to guarantee the long service life of the equipment and
normal operation of the system.Domnick Hunter Filter use the different
structures of the stainless steel frame, corrosion resistance, structural
performance, excellent; welding high strength, low resistance to airflow.
Different precision levels with different structural type filter, a new "hybrid fiber
matrix" to make contact with the medium size area, improved filtration rate, and
improve the filtering effect.
1.Filtering precision:0.01 Micron .
2.Oil contained in compressed is below 0.001ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 3500h-6000h.
5.Initial pressure differential less than 0.02Mpa
6. Large dust holding capacity
7.High pressure stability
8.Flow Rate:1NM3/min
1.We use imported dept-hype filter material,tapered pore structure,gradient filter,
can intercept granule furthest, to extend the service life.
2.We use high-tech support materials.High-tech support materials can not only
play the role of support filter, material and avoiding comprehensive deformation,
but also protect the materials from being damaged during processing.
3.We also use the special spiral wrapping belts,so that filter layers can be
connected firmly.Stationary pleated distance ensures the uniform flow when fluid
penetrating the filter layer.Not only improving pressure drop,but also extending
service life.
| Model of element | Flow Rate(M3/min) | ||
| K009 | 0.53 | ||
| K017 | 1.0 | ||
| K030 | 1.8 | ||
| K058 | 3.6 | ||
| K145 | 8.7 | ||
| K220 | 13.2 | ||
| K330 | 19.8 | ||
| K430 | 25.8 | ||
| K620 | 37.0 | ||
| Filtration Accuracy (μm) | Residual oil component(ppm) | ||
| PF Class: 25 | |||
| AO Class: 1 | 1 | ||
| AA Class: 0.01 | 0.01 | ||
| AX Class: 0.01 | 0.001 | ||
| ACS Calss: Activated Carbon | 0.001 | ||
| AR Class: 1 ( Dust remove) | |||
| AAR Class: 0.01 ( Dust Remove) | |||
