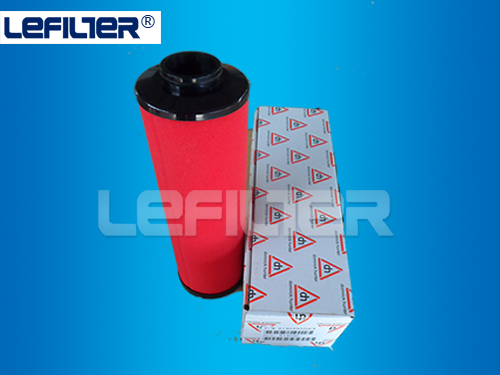

Precision Domnick Hunter Filter Cartridge K145AO made in chi

Read Reviews23 Q&As Write a Review

Product Introduction: In any working conditions, untreated air contains a lot of impurities, such as oil, water, solid particles and so on. The compressed air is the main security energy in the large-scale industrial production, so precisio

PARAMETER

Brand Name: Domnick Hunter Filter
Model Number: K145AO
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

Product Introduction:

In any working conditions, untreated air contains a lot of impurities, such as oil,
water, solid particles and so on. The compressed air is the main security energy in the large-scale
industrial production, so precision filtration of the air is particularly important.

Features:

1.Filtering precision:1 Micron .
2.Oil contained in compressed is below 1ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 3500h-6000h.
5.Initial pressure differential less than 0.02Mpa
6. Large dust holding capacity
7.High pressure stability
8.Flow Rate:7.2NM3/min

Technical data:

	Model of element	Flow Rate(M3/min)
	K009	0.53
	K017	1.0
	K030	1.8
	K058	3.6
	K145	8.7
	K220	13.2
	K330	19.8
	K430	25.8
	K620	37.0
Filtration Accuracy (μm)			Residual oil component(ppm)
PF Class: 25
AO Class: 1			1
AA Class: 0.01			0.01
AX Class: 0.01			0.001
ACS Calss: Activated Carbon			0.001
AR Class: 1 ( Dust remove)
AAR Class: 0.01 ( Dust Remove)

Domnick Hunter models

K017AA K430ACS K330AA K055AO K009AA K058AO
K009AO K030AA K145AX K220ACS K330AR KK430AAR
K620AA K620AO K009AA K017ACS K015 K020
K030 K035 K040 K045 K050 K055
