Brand Name:
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement
Compressed Air filter also called air filter, style, into the gas grid. Air contains
a lot of moisture, dust, oil mist and other impurities which can cause rust after
entering the compressed air system pipes,clogged, resulting in instrumentation
and pneumatic equipment to malfunction. After using an air filter can effectively
remove impurities in the air, so that the air clean, the equipment will operate normally.
Conventional air filters generally have several styles: plastic cover two-pass, pass a
plastic cover, metal cover two pass, metal cover a through hole, environmentally
friendly (full paper), metal cover a pass nonporous, metal cover security core,
plastic cover security core.

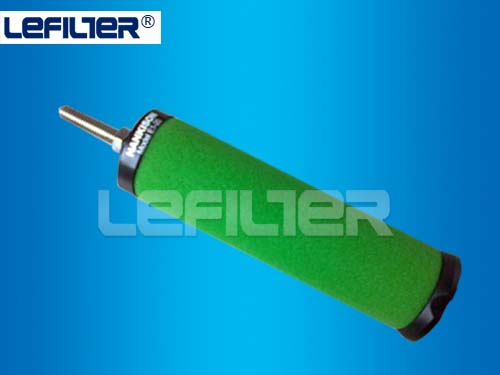

Hankison Filter are used to filter different structure of stainless steel skeleton,
structure, excellent performance, welding, high strength, low airflow resistance.
Acid class of chemical with anti-corrosion oil paint foam bubble sleeve closed,
preventing the coalescence of liquid back into the air, to ensure the high
efficiency degreasing.
1.Working medium: oil, water and solid particles in the air
2.Filter material: imported fiberglass, filter felt
3.Filter accuracy: 0.01um
4.Application: air compressor
5.Weight:1-2kgs
6.service time:5000 hours
7.sealing material:NBR, VITON
8.Oil content:0.001ppm
9.Flow rate:11NM3/min
10Size:68*H450
|
Flow Rate NM3/min |
C Class | T Class | A Class | H Class | Filter Micron (μm) |
| 0.5 | 07.4442-01 | 0731-4 | 0712-3 | 0715-3 | C Class:3 |
| 2~3 | 07.4444-01 | 0731-5 | 0713-5 | 0715-5 | T Class:1 |
| 6 | 07.4445-04 | 0731-6 | 0713-6 | 0715-6 | A Class:0.01 |
| 8 | 07.4446-01 | 0731-7 | 0713-7 | 0715-7 | H Class:0.01 |
| 10~12 | 07.444-01 | 0731-8 | 0713-11 | 0715-11 | |
| 15 | 07.4447-01 | 0731-8 | 0713-11 | 0715-11 | |
| 20 | 07.4447-01 | 0731-9 | 0713-11 | 0715-11 | |
