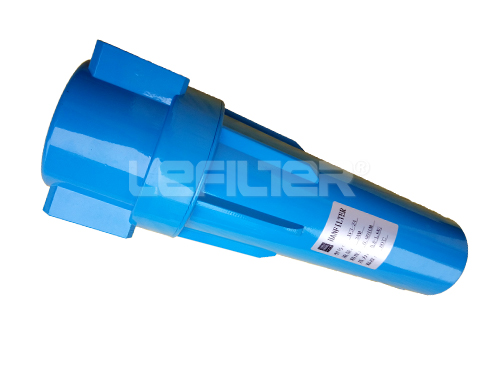

High precision hankison air compressor filter housing

Read Reviews23 Q&As Write a Review
Precision filter characteristics: 1, high efficiency removal of water, oil mist, solid particles, 100% particle removal 0.01m and above, oil mist concentrations at 0.01ppm/wt; 2, reasonable structure, small size, light weight; 3, with prote

PARAMETER

Brand Name: hankison
Model Number: c-030
Nominal filtration rating:1-30um
Application:air compressor
Operating pressure:1.6-32mpa0000000
Working temperature:
Replacement or not:Replacement

Precision filter characteristics:
1, high efficiency removal of water, oil mist, solid particles, 100% particle removal 0.01μm and above, oil mist concentrations at 0.01ppm/wt;
2, reasonable structure, small size, light weight;
3, with protective plastic case and aluminum case cover optional.
4, three sub-purification, and long service life
Precision filter material:
1, shell: aluminum alloy;
2, the protective cover: plastic cups, polycarbonate, metal cup, aluminum;
3, the filter material: B, C series of environmentally friendly specialty fibers, non-woven; D series, activated carbon;
4, level indicator, metal cup, PV.
Q-class precision filter:
Common Range: Normal reciprocating compressor pre-filter
Material: multilayer glass fiber filter
Filter impurities: 5MICRON
Oil filter content: 5PPM
Maximum pressure: 16KG/CM
Maximum temperature: 65 ℃
General Pressure: 0.2KG/CM
Maximum pressure: 0.7KG/CM
Function: a large number of oil and gas within the compressed air filter to filter out impurities and particles within 5PPM to 5 micron.


Model  Description                    Features Application
    Filtration precision
  (micron)
Water removal rate In addition to the oil mist rate

C-class
The centrifugal oil-water separator
    3

     99%

  40%
Separator rear cooler, refrigeration dryer separator, the main Line pre-filter.

T-class

Main pipeline filter

    1

     100%

  70%
Pneumatic tools pre-filter, precision filter pre-filter, suction
 with dryer pre-and post-filter, air filter systems director

A-class
Super efficient micro oil mist filter


   0.01

     100%

  99.99%
On the use of oil-lubricated compressor provides oil-free air to meet the precision instruments, painting equipment and drug packaging and electronics industry needs.

H-class
Activated carbon adsorption filter
   0.01

     Oil content  0.03PPm
Food, hospitals and pharmaceutical factories, diving protective gas, efficient degreasing after filter, suction attachment can not be removed by degreasing oil vapor.
