Brand Name:
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

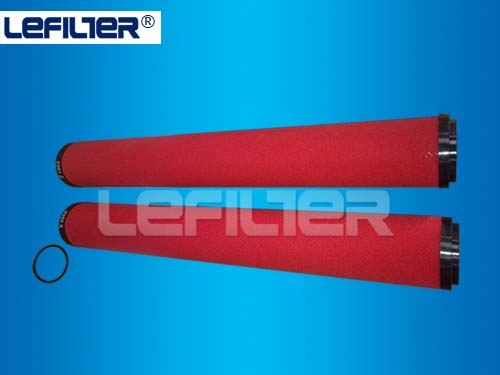

Zander filter element isused to filter different dismissal of stainless dry stock,
corrosion resistance, superior structural performance; seam welded for extra
strength, low resistanceto flow. Different accuracy levels of different filter structure,
a new "matrix blended fiber" media, larger effective surface area, improves capure
rate, enhanced filtering effect. Coated closed cell foam sleeve with resists chemical
attack from oils and acids, ensures high efficiencies by preventing re-entrainment
of coalesced liquids.
1.Duarbility and longevity
2.Beautiful design
3.High quality with reasonable price
4.Afford good service
5.Produce according to your sample or drawing
6.Each product individually tested
1.Type:Precision Filter, Filter
2.Filter material: imported fiberglass, filter felt
3.Filter accuracy:0.01um
4.Application: air compressor
5.Weight:1-2kgs
6.service time:8~12 months
7.sealing material:NBR, VITON
8.Oil content:0.01ppm
9.Flow rate:11.7Nm³/min
| Flow Rate NM3/min | Model |
| 0.5 | 1030 |
| 0.85 | 1050 |
| 1.2 | 1070 |
| 1.7 | 1140 |
| 3 | 2010 |
| 5 | 2020 |
| 7.8 | 2030 |
| 11.7 | 2050 |
| 16 | 3050 |
| 24 | 3075 |
|
Filter Precision (μm) |
Residual Oil Component (ppm) |
||
|
V Class:3 |
5 |
||
|
Z Class:1 |
0.5 |
||
|
Y Class:0.1 |
0.1 |
||
|
X Class:0.01 |
0.01 |
||
|
A Class:Active Carbon |
0.003 |
||
