Brand Name:
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

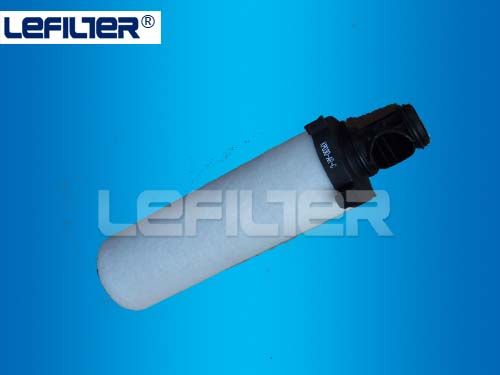

1.Domnick Hunter precision air filter is widely used to filter out the impurities in the
air, such as oil, water, solid particles and so on.
2.If we do not remove these impurities, they will affect the service life of the equipment,
and even threaten the normal operation of the system.
3.The compressed air is the main security energy in the large-scale industrial production,
so precision filtration of the air is particularly important.
1.Filtering precision:0. 01 Micron .
2.Oil contained in compressed is below 0.01ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 3500h-6000h.
5.Initial pressure differential less than 0.02Mpa
6. Large dust holding capacity
7.High pressure stability
8.Flow Rate:3.6NM3/min
| Model of element | Flow Rate(M3/min) | ||
| K009 | 0.53 | ||
| K017 | 1.0 | ||
| K030 | 1.8 | ||
| K058 | 3.6 | ||
| K145 | 8.7 | ||
| K220 | 13.2 | ||
| K330 | 19.8 | ||
| K430 | 25.8 | ||
| K620 | 37.0 | ||
| Filtration Accuracy (μm) | Residual oil component(ppm) | ||
| PF Class: 25 | |||
| AO Class: 1 | 1 | ||
| AA Class: 0.01 | 0.01 | ||
| AX Class: 0.01 | 0.001 | ||
| ACS Calss: Activated Carbon | 0.001 | ||
| AR Class: 1 ( Dust remove) | |||
| AAR Class: 0.01 ( Dust Remove) | |||
