Product Introduction:
In any working conditions, untreated air contains a lot of impurities, such as oil,
water, solid particles and so on. If we do not remove these impurities, they will
affect the service life of the equipment, and even threaten the normal operation
of the system. The compressed air is the main security energy in the large-scale
industrial production, so precision filtration of the air is particularly important.
Application:

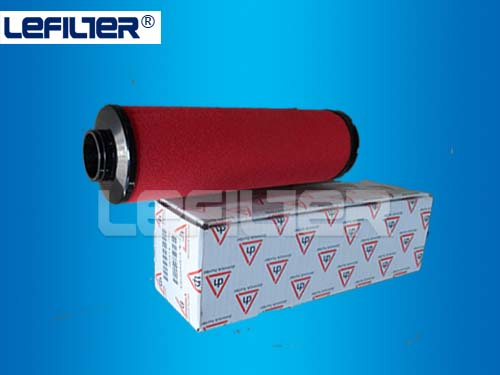

1.Domnick Hunter Filter Element K145AO is mainly used for filtering out the
impurities in the air to guarantee the long service life of the equipment and
normal operation of the system.Domnick Hunter Filter use the different
structures of the stainless steel frame, corrosion resistance, structural
performance, excellent; welding high strength, low resistance to airflow.
Different precision levels with different structural type filter, a new "hybrid fiber
matrix" to make contact with the medium size area, improved filtration rate, and
improve the filtering effect.
Features:
1.Filtering precision:1 Micron .
2.Oil contained in compressed is below 1ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 3500h-6000h.
5.Initial pressure differential less than 0.02Mpa
6. Large dust holding capacity
7.High pressure stability
8.Flow Rate:7.2NM3/min
Advantages:
1.We use imported dept-hype filter material,tapered pore structure,gradient filter,
can intercept granule furthest, to extend the service life.
2.We use high-tech support materials.High-tech support materials can not only
play the role of support filter, material and avoiding comprehensive deformation,
but also protect the materials from being damaged during processing.
3.We also use the special spiral wrapping belts,so that filter layers can be
connected firmly.Stationary pleated distance ensures the uniform flow when fluid
penetrating the filter layer.Not only improving pressure drop,but also extending
service life.
Technical data:
|
|
Model of element |
Flow Rate(M3/min) |
|
|
|
K009 |
0.53 |
|
|
|
K017 |
1.0 |
|
|
|
K030 |
1.8 |
|
|
|
K058 |
3.6 |
|
|
|
K145 |
8.7 |
|
|
|
K220 |
13.2 |
|
|
|
K330 |
19.8 |
|
|
|
K430 |
25.8 |
|
|
|
K620 |
37.0 |
|
|
Filtration Accuracy (μm) |
Residual oil component(ppm) |
|
PF Class: 25 |
|
|
AO Class: 1 |
1 |
|
AA Class: 0.01 |
0.01 |
|
AX Class: 0.01 |
0.001 |
|
ACS Calss: Activated Carbon |
0.001 |
|
AR Class: 1 ( Dust remove) |
|
|
AAR Class: 0.01 ( Dust Remove) |
|
Domnick Hunter models
K017AA K430ACS K330AA K055AO K009AA K058AO
K009AO K030AA K145AX K220ACS K330AR KK430AAR
K620AA K620AO K009AA K017ACS K015 K020
K030 K035 K040 K045 K050 K055
Quality assurance:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing
