RFLDBN/HC5200CAK10D1X RFLD Double Line filter

Read Reviews23 Q&As Write a Review

1.Filtering and high precision 2.Service life is long 3.Obtained ISO,GMP,3A,IDF,DIN Quality System Certificated

PARAMETER

Brand Name:
Model Number: hc9600fkp13h
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

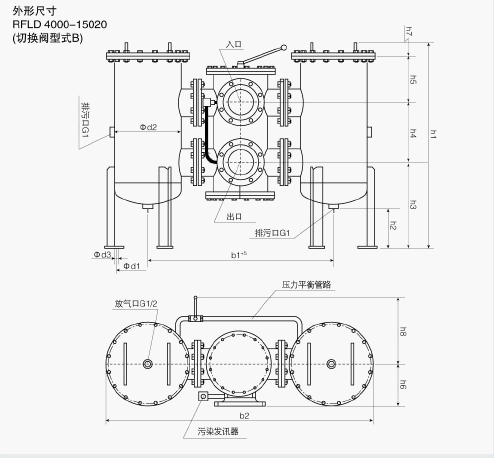

RFLD Double Line filter

1.MODEL COLD
RFLD  BN/HC  5200 C    A     K   10     D    1       X
(1)         (2)         (3)    (4)  (5)  (6)  (7)   (8)  (9)   (10)
Detailed Explanation :
(1)RFLD: The form of filter
(2)BN/HC : Material of filter element
BN/HC ,W/HC
(3)5200: Specification
  1300/1320/2500/2520/4000/4020/5200/5220/6500/6520/7800/7820/5000/5020
(4)C:Working pressure       C=16bar
(5)A : Switching valve forms
(6)K : Connection Type / Specifications
(7)10：Filtration precision (μm)
  BN/HC ,BH/HC : 3,5,10,20
  P/HC : 10,20
  W/HC : 25,50,100,200
(8)D :Form of pollution sender device
A : Mounting holes closed indented bolts
B: With visual pollution sender
C: With electrical pollution sender
D: Visual / electrical pollution sender
(9)1: standard connector
  (10)X : Latest version
2.Parameter
   Flow : 15000L/min
Material : Welded carbon steel / stainless steel
Pressure : 16bar

3.Matching the filter description

Specification : 0950/1300/1700/2600
Form :  R
   Filtration precision (μm) :
      BN/HC : 3,5,10,20
      W/HC: 25,50,100,200
Filter material : BN/HC ,P/HC,W/HC
