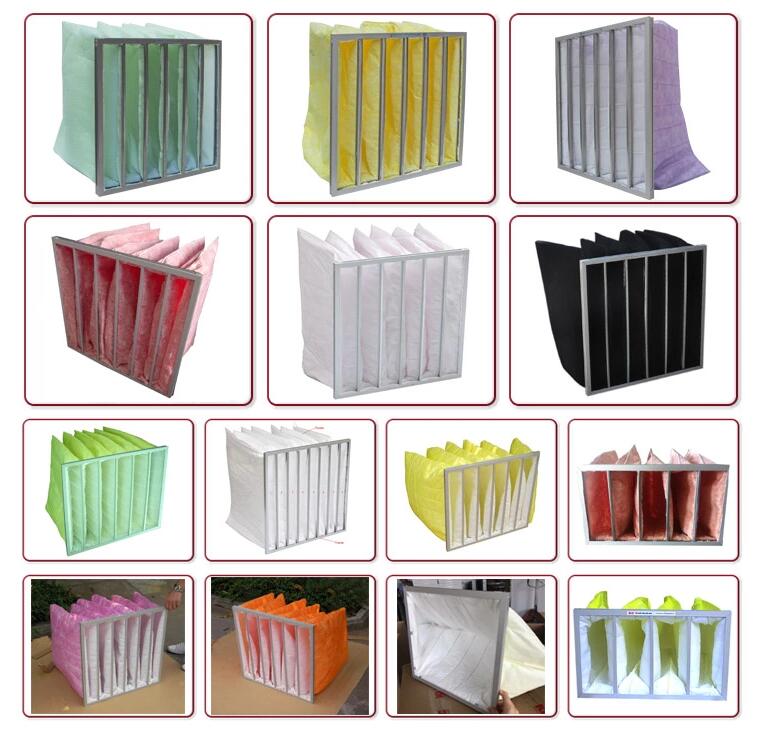

Galvanized steel frame HVAC industry pocket filter

Synthetic Fiber media bag air filter with aluminum frame



Product features

Solid all-metal frame structure

High quality fluffy multi-layer synthetic fiber filter paper

High dust holding capacity, low resistance (300-400g/m2)

Ultrasonic seamless close-fitting bag structure



Instruction for structure

With the solid and leak-proof frame structure, the M-Pack uses a double U-shaped aluminum alloy outer frame, and the bag is opened by a support grid locked in the U-shaped frame, and the adjacent grille presses the bag tightly. The special knot is tightly locked to prevent the bag from falling off during handling and use.All metal edges of the filter are rolled to avoid easy and safe operation during the installation and replacement of the filter.

High quality fluffy synthetic fiber filter.M-Pack filter material uses imported filter material made of synthetic fiber.The filter material is processed by four different layers of non-woven fabrics through special process to form an encrypted structure, so that the filter can achieve high dust holding capacity and low resistance, while the needle punch layer andmicrofiber layer in the filter material also ensure the filtration efficiency of the filter material.



 Material list

Frame - double U-shaped aluminum alloy / stainless steel / galvanized iron sheet (GI)

Optional thickness of frame - 20mm / 21mm / 26mm / 47mm

Filter material - Synthetic Fiber

Ribs - galvanized steel strip

        Connection angle - solid, high temperature resistant ABS plastic angle / aluminum alloy

angle
