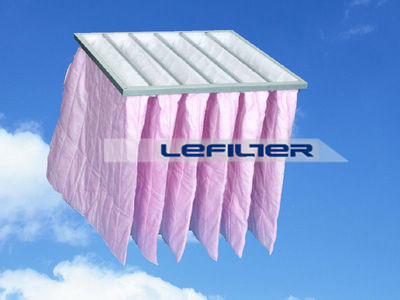

chemical fiber filtering media F7 class washable bag filters
Description:
(1).Bag filters are the most commonly-used air filters in industrial and civil ventilation systems.For the filters,it is the trend for fiber filtering media to replace traditional fiber glass materials.
(2).Our company adopts imported high-quality fiber filtering media to produce ADC/H bag filters,which are the best choice for customers who like fiber filtering medias.
(3).The filtering grades of ADC/H filters include F5,F6,F7 and F8.
Features:
Fire-resistance material:ADC/H filters adopt fire-resistant material and the filters satisfy fire-fighting requirements of all kinds of places.Fire-fighting grade of the filters is UL2.
Environment-friendly:
The filtering media of ADC/H can be burnt,so it is easy and economical to deal with rubbish,also it is more energy-saving for the production of chemical fiber than the fiberglass filtering media.
Cheap:
Through the efforts of chemical fiber industry,now the price is lower than traditional fiberglass .So the price of fiberglass filters is significantly lower than the traditional bag filters.
model:
|
Model
|
Class
|
Dimension(mm)
|
Pocket No.
|
Filter are(m2)
|
Resistance/airflow
|
|
Pa/(m3/h)
|
|
ADC/H 6660/08-F5
|
F5
|
592x592x600
|
8
|
6.18
|
20/2500
|
40/3600
|
70/5000
|
|
ADC/H 6660/06-F5
|
F5
|
592x592x600
|
6
|
4.64
|
20/2500
|
45/3600
|
70/5000
|
|
ADC/H 6650/06-F5
|
F5
|
592x592x500
|
6
|
3.86
|
25/2500
|
40/3600
|
70/5000
|
|
ADC/H 3660/04-F5
|
F5
|
287x592x600
|
4
|
3.09
|
20/1250
|
40/1800
|
70/2500
|
|
ADC/H 3660/03-F5
|
F5
|
287x592x600
|
3
|
2.32
|
20/1250
|
40/1800
|
70/2500
|
|
ADC/H 3650/03-F5
|
F5
|
287x592x500
|
3
|
1.93
|
20/1250
|
40/1800
|
70/2500
|
The above is part of model,if you need others,welcome to contact anytime.
