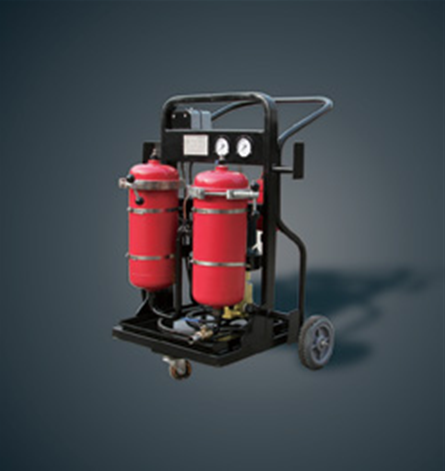

LYC-B high precision oil filtration cart
Release date:2012-10-30 Author:LEFILTER
Application:
To filter the oil which is filled up in hydraulic lubrication systerm, to establish equipment periodic maintenance.
The by-pass filtration for the working hydraulic lubrication systerm.
the circulation filtration before hydraulic lubrication system in motion
The oil of hydraulic lubrication system is filtered and pumped without the pump of equipment itself.
Description:
－It includes a special gear wheel drove by electric machinery,it has features of low noise,good self-priming and stable performance.
－Excess flow protection device has been fitted in high pressure pipelines to protect hydraulic system.
－Using thermal overload relay to provide overload protection for electric machinery.
－The coarse suction filter can not only protect oil pump but aslo prolong the service life of main filter.
－It is Consist of two grades to sift the procedure of examining precisely after the pump, make the oil reach very high cleanness degree.
－According to different requirements,the filter precision can be selected to reach different oil rate.
－With quick-opening structure on the filter body, the filter elements can be replaced conveniently without any other tools,the pressure gauge on the panel indicates system state and pollution degree of filter element continuously.
Technical Parameter:
| Model No. | LYC-32B-* | LYC-50B-* | LYC-63B-* | LYC-100B-* | ||
| RatedFlow | L/min | 32 | 50 | 63 | 100 | |
| Rated Voltage | Mpa | 0.6 | ||||
| Loss of voltage | Mpa | >0.2 | ||||
| Pump-in filtering precision | um | 100 | ||||
| The first Filtration precision | um | 10、20、30 | ||||
| The second Filtration precision | um | 1、3、5、10 | ||||
| Motor Power | Kw | 0.75 | 1.1 | 1.1 | 2.2 | |
| Power Supply | V | AC380V | ||||
| Weight | Kg | 90 | 100 | 108 | 150 | |
| M/C size | mm | 720×680×1020 | 720×680×1020 | 720×680×1020 | 740×740×1180 | |
Note: *:The second Filtration precision,eg:003 :3μ
**:medium,Omission:General hydraulic oil;BH:water-glycol;V:phosphate ester.
*** medium viscosty≤160cSt
