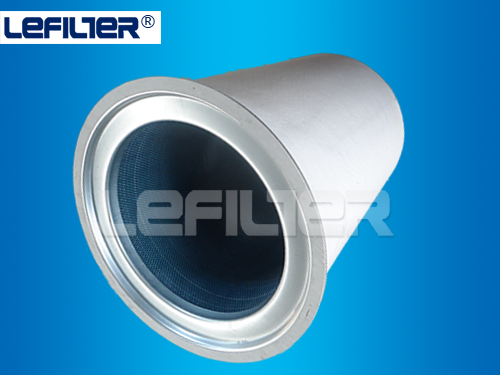

OEM high performance fiberglass material air oil separator 9

IngersollRand Filter Product Introduction:

Air oil separator is a key to decide the quality of screw air compressor. It can
insure the air quality under the correct mounting and use. The service life could
be up to four thousand hours. The compressed air carries oil big and small drops.
The big ones are easy to be separated. But the suspended small oil particles must
be filtered by using the glass fiber filter layer in micron of the air oil separator.Complying
with technology design principle as ‘adopt leading technology and win in quality’,
our company first establish standard for oil air separator element in Chinese territory
and use first class production equipment in the world. We establish testing lab which
complies with ISO8573 standard strictly and imports best filter material and fine panels
in quality which resists corruption and high pressure produced in Germany or the United
States after strict biding. Through above methods we ensure oil air separators we produced
has special and fine features such as long service life, low differential pressure, high efficiency,
easy for replacement and strong reliability, which can operation cost of customers.

Fetures:

1.Filtering precision:0. 01 Micron .

2.Oil contained in compressed is below 3ppM.

3.Filtration efficiency:99.99%.

4.Service life is approximately 3500h-6000h.

5.Initial pressure differential less than 0.02Mpa.

6.Filter element of air oil separator is made by the thin fiberglass,which imported from HV&Lydall company.

IngersollRand Filter models

88171913    39708466    92686922    39322201
89295976    39708466    92686930    35153520
42855429    99267031    92686948    35123512
39588470    99273906    92686955    39207972
42888214    99266702    54717145    39207964
22203095    39903281    54717152    39189048

National standard filters & filter elements,interchange of foreign filters & filter elements,filter carts series,filter equipments,

hydraulic accessories and testing equipments.etc.Our products are manufactured in accordance with the international Standard,ISO,DIN,IDF,3A,GPM,etc.

Hydraulic Filter Element:
EPE,Vickers,Argo, Hadac, Hy-Pro, P-all,  Parker, Internorman, Stauff, Mp-filtri, etc
Air Compressor filter:
Atlas Copco Filter,   Ingersoll-rand,  Sullair,   Fusheng,   Hitachi, etc.
Compressed Air Filter:
Hankison,   Domnick Hunter,   Ultrafilter,   Parker,   Hiross, etc.
Water Filter Element:
PP water filter,   PP spray melt filter,   Coiling filter,   Active carbon filter,  etc.
Air Filter
Hydraulic Filter Housing
Hydraulic Part
Oil Filter Machine

Quality assurance:

ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing
