Product Introduction:

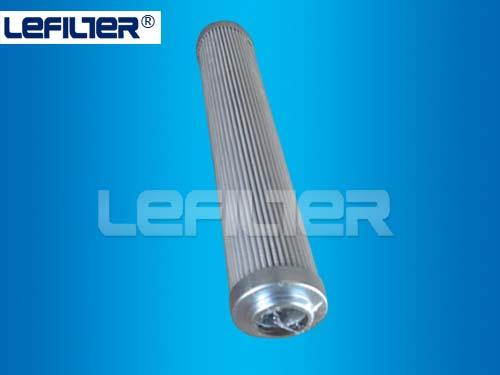

1.Hydraulic oil filter maintains the cleanness of the operating fluid by
filtering out foreign substances such as metallic powder contained in
operating fluid which is flowing in the hydraulic circuit. It plays important
role to protect a hydraulic system.
2.Sintered filter element can be made from two-layer to five-layer.
3.The filtration rating is accurate, or multi-layer metal mesh. The layer
number and the mesh count of the filter media depend on the applicatithe
pressure applied is high, the straightness is good, the surface is clean
without any burr.This kind of stainless steel cartridge ensures a long
service life.
4.Stainless Steel Cartridge Filters are used where high temperature
and material compatibilities restrict polymer and fabric uses.
Application:
Our products are widly used in the industry and field of Metallurgy, petrifaction,
spinning, electron & pharmacy, power generation & nuclear power, machining
equipment, train internal combustion engine & generator, auto engine &
engineering machinery and so on.
Features:
1. Material: HV fiberglass, Ahistrom filter paper, stainless steel wire mesh
2. Filter rating: 1, 3, 6, 12, 25 …um
3. Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
4. Application field: hydraulic system, lubrication system
5. O-Ring: NBR, fluororubber
Quality assurance:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing
