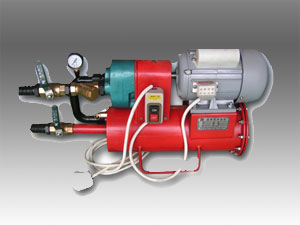

BXLUC Portable Oil Filter

Release date:2012-06-19 Author:LEFILTER




BXLUC Portable Oil Filter Series

Application:
To filter the oil which is filled up in hydraulic lubrication systerm, to establish equipment periodic maintenance.

The by-pass filtration for the working hydraulic lubrication systerm..

Product Introduction:
?It is the oil filter which is more portable made by Lifeierte company.
?It is filled up the hydraulic lubrication equipment with oil and purify oil whenever it is needed which is easy to operate and convenient to carry.
?The coarse suction filter can not only protect oil pump but also prolong the life of main filter.
?According to different requirements,the filter precision can be selected to reach different oil rate.

                                                                                                                                Outside Measurement:                  Systematic Diagram :










Technical Parameter:

Model No.
BLYC-6-*
BLYC-10-*
BLYC-16-*
Rated Flow
L/min
6
10
16
Rated Voltage
Mpa
0.4
Loss of voltage
Mpa
>0.02
Pump-in filtering precision
um
40
Pump-out filtering precision
um
1?????????0???0
Motor Power
Kw
0.18
0.25
0.35
Power Supply
V
AC380V?AC220V
Weight
Kg
220
280
400
M/C size
mm
380×200×510
400×200×510
420×200×510


Note: *:Filtration precision,eg:003 :3μ
??   **:medium?Omission:General hydraulic oil;BH:water-glycol;V:phosphate ester.
   *** medium viscosty≤160cSt
