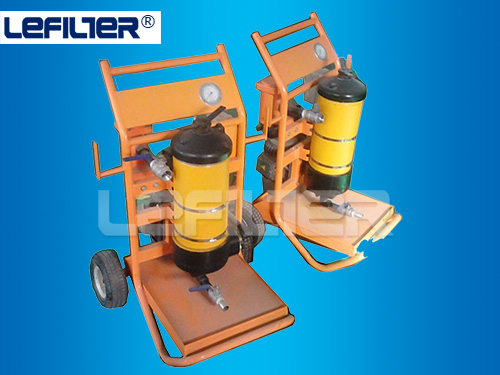

PFC Hydraulic Oil Portable Filter Cart

Read Reviews23 Q&As Write a Review

Brief introduction: PECoilfiltrationcartadoptsnewgreenfiltrationcomponents.Onmanyoccasionsitfilterssolidparticlesinmanykinds ofliquidineffectively. Features: 1.Locking differential pressure alarm and prevent the false alarm when cold start

PARAMETER

Brand Name:
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

Brief introduction:

PEC oil filtration cart adopts new green filtration components .On many occasions it filters solid particles in many kinds
of liquid in effectively.

Features:

1.Locking differential pressure alarm and prevent the false alarm when cold start

2.Filter strainer with by-pass valve to avoid system fluid off

3.Motor lack phase or misphase protection

4.Acousto-optic differential pressure alarm prompt replace filter element

5.coarse filter to protect pump in suction oil mouth.

6.Oil outlet diffuser to prevent air from oil tank

7.Universal wheel makes cart flexible and convenient

8.Increase the oil collecting tray and tubing fixed installation

9.Oil pump with overflow valve

Technical data:

Model	PFC8924-25	PFC8314-50	PFC8314-100	PFC8314-100		PFC8314-150		PFC8300-50-YV	PFC8300- 100-YV	PFC8314- 400
Rated pressure (Mpa)	1.0 MPa
Motor power (Kw)	0.75kw	1.5kw	3kw		3kw		4kw	2.2kw	4kw	15kw
Power	380V×3/50Hz
Rated flow rate (L/min)	25	50	100		100		150	50	100	400
Filtration precision	ß×=1000(×=2.5,5,7,12,22)/old standard ß×≥200(x=1,3,6,12,25um)
Working temperature(°C)	0~80°C
Media	Mineral oil,water glycol,phosphate ester flame resistant fluid
Media viscosity (cSt)	≤100cSt							≤700cSt		≤260cSt
Size	600x550x860	700x650x900	800x650x1400		700x650x950		800x650x1400	700x650x900	1000x810x1610	1720x1620x1740
Weight(Kg)	65	115	160		115		165	115	192
