UH319 Series Filters
ULTIPLEAT® SRT HIGH PRESSURE FILTERS
Side and Top Manifold Mounting
• Patented Ultipleat (laid-over pleat)
filter medium pack
• Coreless, cageless element
configuration
• P-all Stress-Resistant Technology
(SRT) Media
• In-to-out filter element flow path
• Flows to 600 L/min (160 US gpm)
• Pressures to 420 bar (6100 psi)
• Ports, 1½" top and side manifold mount

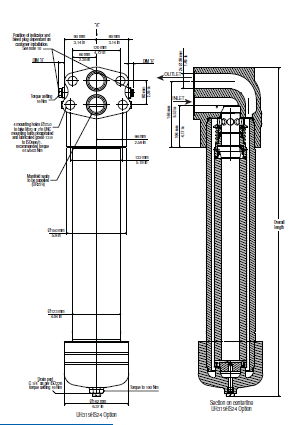

Notes and Specifications
Filter Housing
• Maximum Working Pressure:
420 bar (6100 psi)
• Rated Fatigue Pressure:
0-240 bar (3500 psi) per NFPA
T2.06.01R2-2001 CAT C/90
(1 million cycles), verified by testing
at 0-280 bar (4050 psi) for 1 million
cycles. Contact P-all for applications
with higher pressures at lower cycles
• Typical Burst Pressure:
1500 bar (21,750 psi)
• Fluid Compatibility:
Compatible with all petroleum oils, water
glycols, water-oil emulsions and most
synthetic hydraulic and lubrication fluids
• Temperature Range:
Fluorocarbon Seals:
-29°C to 120°C (-20°F to 250°F)
60°C (140°F) maximum in HWCF
or water glycol fluids
• Bypass Valve Setting:
4.5 bard (65 psid)
• Indicator Pressure Setting:
3.5 bard (50 psid)
• Materials of Construction:
Head: Ductile Cast Iron
Tube and Cover: Carbon steel
Filter Element
• Filter Element Burst Pressure:
10 bard (150 psid)
• Ultipleat SRT Element Construction:
Inorganic fibers impregnated and
bonded with epoxy resins. Polymer
endcaps. Anti-static media design
Technical Information
Quality assurance:
