UE319 series filter element,for a variety of liquid medium in various of occasions,it can make the solid particles superfine filtration.
Usually,it widely used in hydraulic and lubricant system.Lefilter adopts HV and Lydall fiberglass material to manufacture the filters,which can replace the original filters.
1. Material: HV fiberglass, Ahistrom filter paper, stainless steel wire mesh
2. Filter accuracy: from 1, 3, 6, 12, 25 …um
3. Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
4. Application field: hydraulic system, lubrication system
5. O-Ring: NBR, fluororubber
Quality assurance:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing
Data sheet:
|
Data items |
Data sheet details |

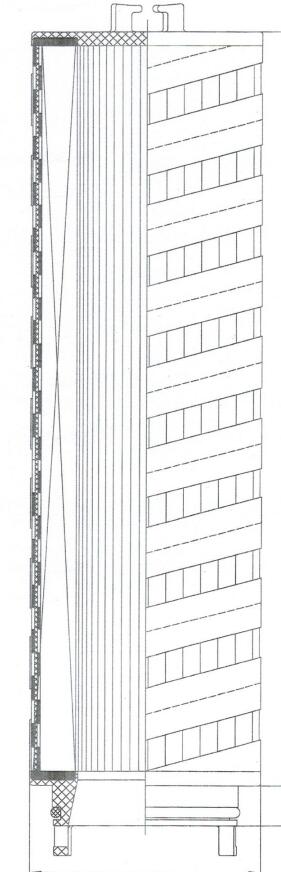

Size details |
|
Media |
Fiberglas |
A:53mm |
|
Micron |
1-25micron |
4H/4Z |
D116mm |
|
Collapse |
20-210 Bar |
8H/8Z |
D:209mm |
|
Seal type |
NBR/Viton |
13H/13Z |
D:330mm |
|
By-pass |
No |
|
|
|
Fluid comp |
Mineral oil, etc |
|
|
|
AZ |
AP |
AN |
AS |
AT |
Z |
H |
|
3um |
5um |
7um |
12um |
22um |
Vi ton |
NBR |
