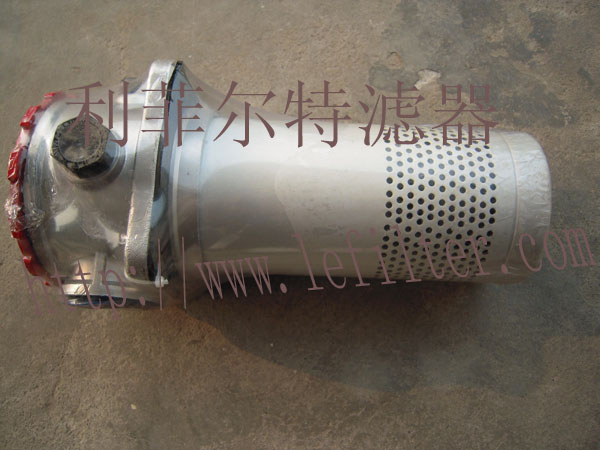

RLF return line filter
1.RLF series filter is used in return line, it can remove all the contaminants from the hydraulic system,
and allow clean oil flow back to the tank.. the elelment of this series is made of glass fibre, it has
effiency and filtration, large dirt capacity and lower initial pressure drop. There is a by-pass vavle and a
contamination indicator. The indicator will act when pressure drop across filter
element attains 0.35Mpa, the element should be changed at this time. If the syetemcan not be
stopped or nobaby replaces the element, the by-pass vavle will open to protect the hydraulic syetem safty.
2.TECHNICAL DATA
|
Model
|
Dia
(mm)
|
Flow
(l/min)
|
Filtr
(um)
|
Press
(Mpa)
|
Pressure loss(Mpa)
|
By-pass valve setting (Mpa)
|
Indicator power
|
Weight
|
Model of element
|
|
Initial
|
Max
|
|
RLF-60×*P
|
25
|
60
|
1
3
5
10
20
30
|
1.6
|
0.2
|
0.35
|
0.4
|
24V/48W
220V/50W
|
3.7
|
SFX-60×*
|
|
RLF-110×*P
|
110
|
4.2
|
SFX-110×*
|
|
RLF-160×*P
|
40
|
160
|
6.8
|
SFX-160×*
|
|
RLF-240×*P
|
240
|
7.5
|
SFX-240×*
|
|
RLF-330×*P
|
50
|
330
|
10.2
|
SFX-330×*
|
|
RLF-500×*P
|
500
|
11.3
|
SFX-500×*
|
|
RLF-660×*P
|
80
|
660
|
24.4
|
SFX-660×*
|
|
RLF-850×*P
|
850
|
26
|
SFX-850×*
|
|
RLF-950×*P
|
100
|
950
|
34.1
|
SFX-950×*
|
|
RLF-1300×*P
|
1300
|
38.8
|
SFX-1300×*
|
NOTE:* is filtration accuracy.If the medium is water-glycol,and the filter equiped with indicator ,the model of this filter is RLF.BH-60X*P,the model of element is SFX.BH-60X*
