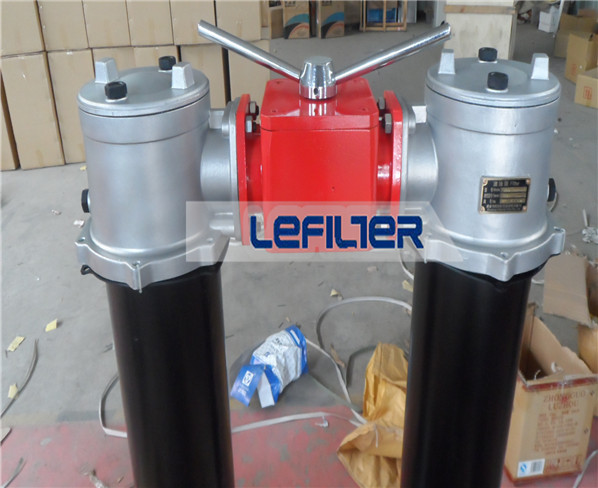

SRFB-25x10-FY/C duplex tank mounted return filter
The SRFB series filter is composed of two single bowl filters and 2-position 3-way directional valve,it is simple in structure and easy to use.It is mounted on top,at the side or in the bottom of tank.There is by-pass valve and contamination indicator in it,for protecting the hydraulic system safety.
The feature of this filter allows continuous operation even during replacing element which is clogged by contaminant.Turn the directional valve,the other filter will be working in the hydraulic system,the clogged element should be changed in that time.
This series filter is widely used in the hydraulic system of heavy duty,mining and metallurgical machinery.
TECHNICAL DATA
|
Model |
Flow
(L/min) |
Filtr
(um) |
Press
(Mpa) |
Pressure loss
(Mpa) |
Indicator |
Weight |
Connecting |
Model of element |
|
Initial |
Max |
V |
A |
|
SRFB-25X*F-C/Y |
25 |
1
3
5
10
20
30 |
≤1.6 |
≤0.075 |
0.35 |
12
24
36
220 |
2.5
2
1.5
0.25 |
|
Flange |
SFBX-25X* |
|
SRFB-40X*F-C/Y |
40 |
|
SFBX-40X* |
|
SRFB-63X*F-C/Y |
63 |
|
SFBX-63X* |
|
SRFB-100X*F-C/Y |
100 |
|
SFBX-100X* |
|
SRFB-160X*F-C/Y |
160 |
|
SFBX-160X* |
|
SRFB-250X*F-C/Y |
250 |
|
SFBX-250X* |
|
SRFB-400X*F-C/Y |
400 |
|
SFBX-400X* |
|
SRFB-630X*F-C/Y |
630 |
|
SFBX-630X* |
|
SRFB-800X*F-C/Y |
800 |
|
SFBX-800X* |
|
SRFB-1000X*F-C/Y |
1000 |
|
SFBX-1000x* |
|
SRFB-1300X*F-C/Y |
1300 |
|
SFBX-1300X* |
NOTE:*is filtration,if used water-glycol,and the filter equipped with CYB-I indicator,the mode of this filter is SRFB.BH-63X*Y,model of element is SRFX.BH-63X*.
