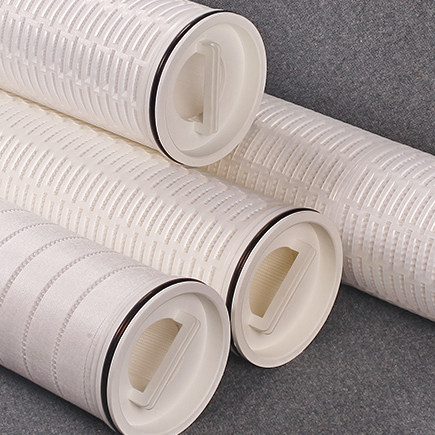

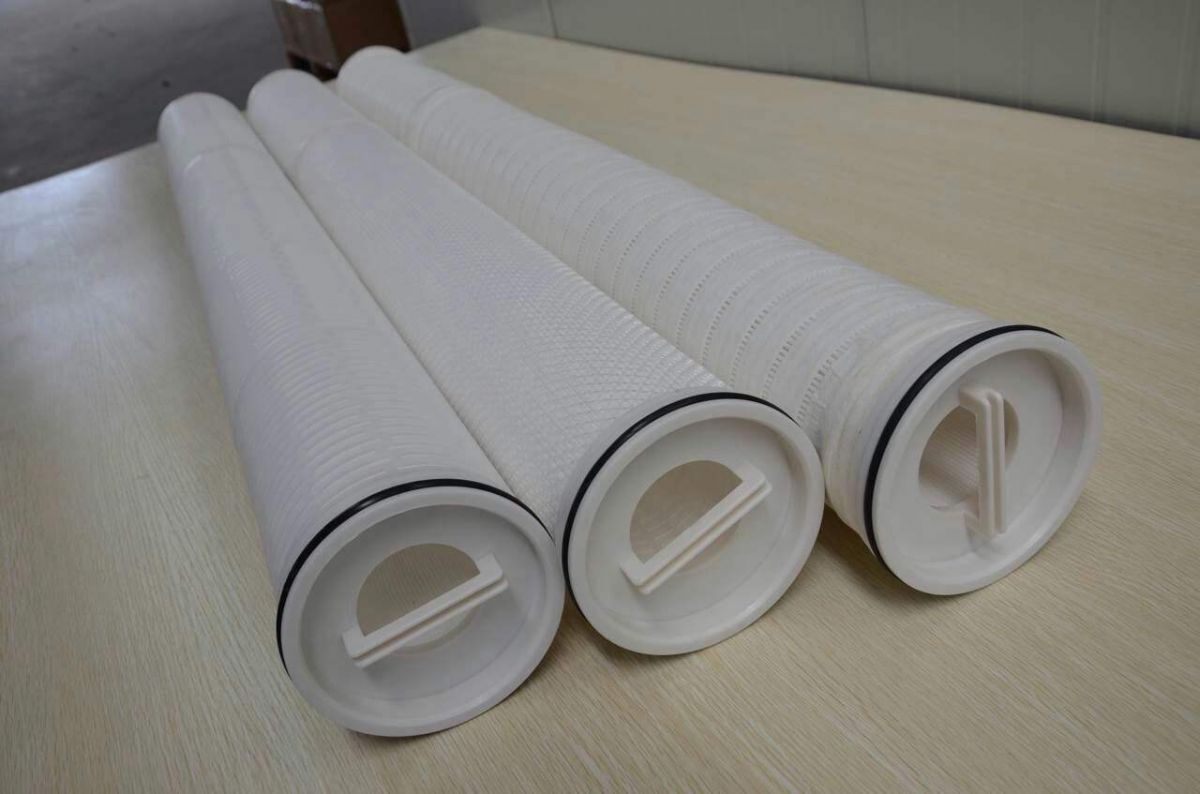

20inch/40inch/60inch Power Plant High Flow PP polypropylene Filter Cartridges Hfu660uy040j
Hfu660uy040j Filter Elements
• New, larger cartridge geometry
• Poly-Fine ® Extended Life Depth (XLD) proprietary
media for the innovative merger of depth and pleated
technologies
• High surface area, high flow capacity
• Excellent retention of deformable contaminant
• Proprietary gel guard media

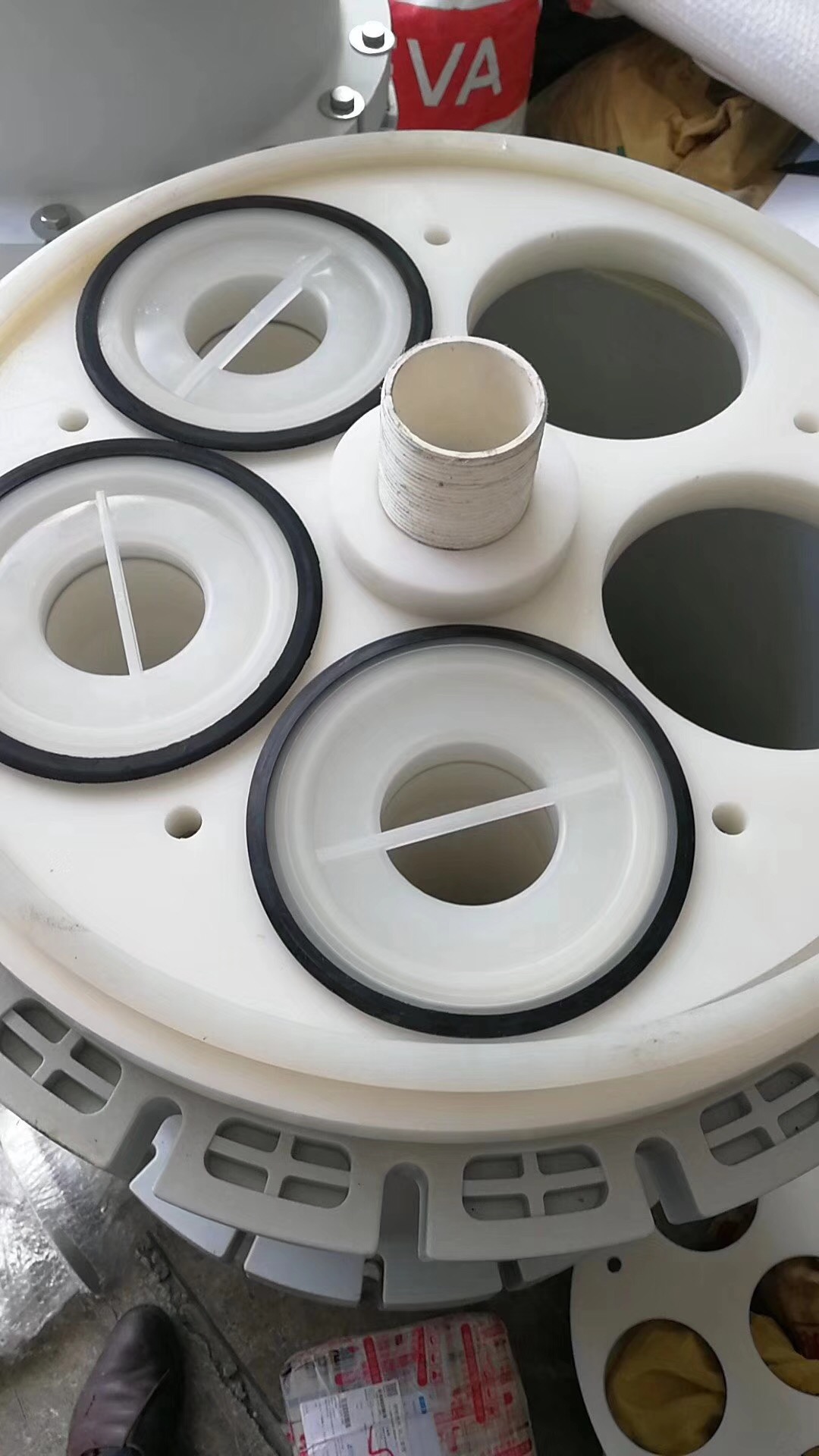

• Available to fit most Size 1 and Size 2 bag housings
with no hardware changes
• Available in 101.6 cm (40 in) for use in unique
101.6 cm (40 in) Marksman housings
• Inside-out flow traps contaminant inside the element
• Quick, easy change-outs
• All polypropylene construction
• Short length option to accommodate shorter baskets
|
Micron |
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
|
Cartridge Length: |
20" (508mm) /40" (1016mm)/60" (1524mm) |
|
Cartridge Max.OD: |
6"(152mm) |
|
Filter Medium: |
Polypropylene , Cellulose , Melt Blown PP |
|
Support: |
Polypropylene |
|
End Caps: |
Glass Fiber Reinforced Polypropylene |
|
O-ring Seal options: |
EPDM,NBR,Viton |
|
Polypropylene: |
3.44bar@82°C,50psi@180°F |
|
Glass Fiber: |
3.44bar@121°C,50psi@180°F |
|
Suggestion Flow: |
20" 660LPM |
|
40" 1300LPM |
|
60" 1900LPM |
