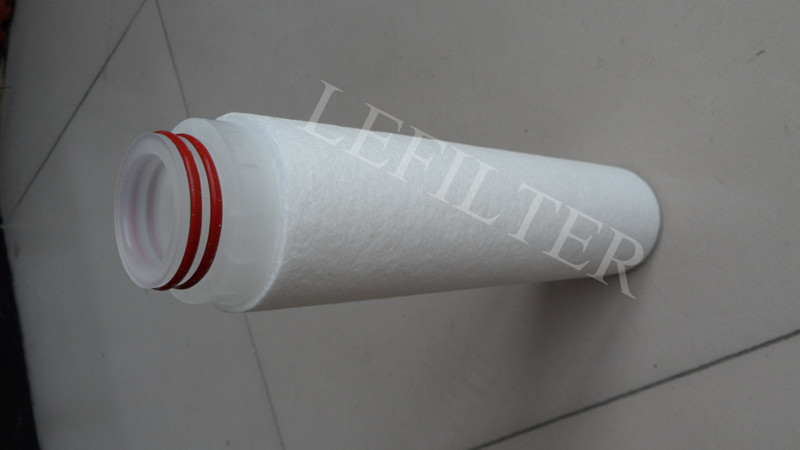

PP polypropylene melt blown water purifier
PP polypropylene (Melt Blown) water purifier is fusing and intertwined of polypropylene resin without any chemical glues.The cartridges are glued at random to form 3D micro pore which will make the cartridge 3 layers with fine fibers in surface and coarse fibers and deep filtration. As the fiber and density form high filtration rating and pollutants holding capacity on diameter of filter cartridge, low pressure drop, gradual changing deep filtration structure with loose outside and close inner, strong pollutants holding capacity, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.
water purifier Technical Specifications:
Filter size
l Outer diameter :standard filter 62mm,110mm ,non-standard filter can be produced according to the request of customers
l Inside diameter : 16mm,20mm,26mm,28mm,30mm,34mm,38mm,55mm,60mm,73mm,75mm,90mm,100mm,110mm
l Length : 9.75'' ,9.87'' ,10'' ,20'' ,30'' ,40'' ,50'',60''
Parts material :
Filter media: Polypropylene
End caps: Polypropylene
Cores: Polypropylene
Gaskets/O-ring: Silicone, EPDM, NBR, Viton, Teflon
Filter cartridge :
Filteringprecision:1um,5um,10um,20um,50um,75um,100um
The highest operating temperature :37.8℃
Maximum operating pressure:4.0Bar
Due to the different aperture ,maximum operation pressure
Water purifier Properties:
Three layers structure cartridge offers high dirt holding capacity,longerservice life
●Formed by thermal bond without using any binders and adhesives.
●100% Pure Polypropylene will not cause any pollution to water.
●Wide Chemical compatibility
●Groove design to extend the filtration surface area.
●All kinds of adaptors are available.
Application field :
Drinking Water Treatment
Electronic
Industrial Water Treatment
Plating
Chemicals, solvents
Drinking water filtration and RO reverse osmosis filtering
Acid and alkali liquid filtration in chemical process
Industrial water and electroplating water's filtration
Liquid medicine used for imaging and ink filter
Sterile water and ultrapure water's filtration in advance
Chemical raw materials and organic solution's filtration
PP melt blown water purifier Order information:
|
Filtering precision |
Filter length |
Filter's surface |
Sealing material |
|
1um |
9.75''(248mm) |
PPspray melting |
silicone rubber |
|
5um |
9.87(250mm) |
Spray melting fine lines
|
Ethylene propylene rubber |
|
10um |
10''(254mm) |
Spray melting grooving |
butadiene acrylonitrile rubber |
|
20um |
20''(508mm) |
|
fluorine rubber |
|
50um |
30''(762mm) |
|
|
|
|
40''(1016mm) |
|
|
