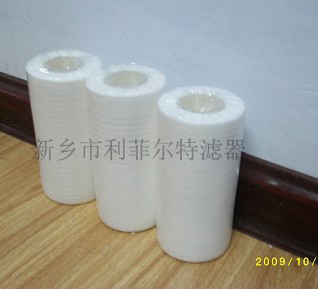

PP water filter element 10"*1"*0.01um
Description of product
PP water filter cartridge is made of melted 100???nbsp;food grade Polypropylene.
Comparing with PP string filter cartridge ,it has better chemical durability and longer service life,Caliber.1",0.5"
Specifications
|
Fiber
|
100%PP
|
|
Substrates
|
100%PP
|
|
Square Weight
|
450g/m2
|
|
Thickness
|
0.5"
|
|
Density
|
0.26g/cm3
|
|
Ventilation Volume
|
140L/dm2.min
|
|
Breaking Strength-lengthwise
|
≥1200 N/5cm
|
|
Breaking Strength-breadth wise
|
≥1200 N/5cm
|
|
elongation@200N/5cm-lengthwise
|
<5%
|
|
elongation@200N/5cm-breadth wise
|
<5%
|
|
Shrink @150degC,90min
|
1%
|
|
Bursting strength
|
>300 N/cm2
|
|
Continuous temperature
|
90°C
|
|
Instantaneous temperature
|
100°C
|
|
Reprocessing
|
Heat-setting Firing pressure
|
Standard technical data
|
Size
|
Component material
|
Property
|
|
OD
|
2.48"4.53"
(As your request)
|
Shell cover
|
PP
|
Filtration
|
1um,3um,
10um,25um,50um,75um,
100um,
150um
|
|
ID
|
1.10"1.18"
|
Pole
|
PP
|
Temperature
|
82???/font>
|
|
Length
|
9075"9.87"10"20"30"40"
50"60"
|
Spacer/
seal ring
|
Silastic,EPR,NBR, Fluororubber
|
Max
|
2.0bar 21???/font>
|
|
Filter medium
|
PP
|
