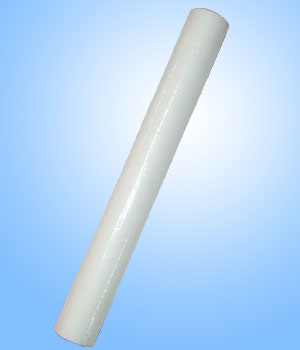

PP Melt Spinning Cartridge 40" liquid filter element
1.Introduction and features
Adopt the international standard gradient diameter drafts,the fiberglass shapes three-dimensional micro hole structure,micropore diameter spreads from out to inside
by gradient,combines the appearance, deep layer with coarse and fine filter.It can removal different diameters impurities and equip different end caps to meet all kinds
of project installations.
2.Technical data:
Outer diameter: φ65±2mm
Inner diameter:29±1mm
Length:10" 254mm(500) 20" 508mm(500) 30" 762mm(750) 40" 1016m(1000)
Operating temperature:80°
Application:
Widely applied to filter the beverage industry,drinking water,ultrapure water equipments,oilfield flooding,Chemical liquid medicine,electroplate liquid and so on electron,
petrochemical industry,medicine and food industry liquid.
|
Accuracy(um) |
Initial Accuracy(um) |
Max particles(um) |
Flow rate(L/min) |
|
1 |
10-20 |
20 |
20 |
|
3 |
15-25 |
25 |
25 |
|
5 |
20-30 |
30 |
30 |
|
10 |
30-40 |
45 |
35 |
|
20 |
35-50 |
60 |
40 |
|
30 |
40-60 |
70 |
50 |
|
50 |
50-70 |
80 |
60 |
|
75 |
60-80 |
100 |
70 |
Note:
The filtration efficiency of initial accuracy N=95%,max particles filtration efficiency N=99%,flow rate under differential pressure △P=0.015Mpa
