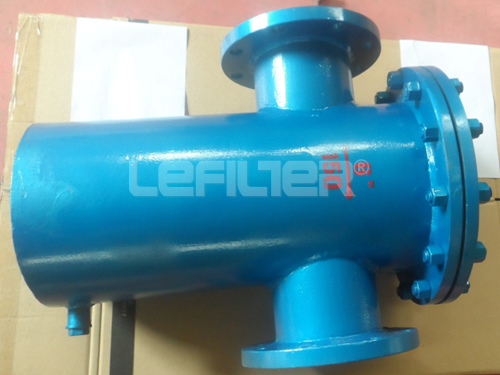

Basket Oil Filter
This strainer is indispensable to the pipeline accessories, installed in the pipeline to filter out the solid impurities, ensure the flow line equipment system normal operation. Can make more pure fluid, get the ideal industrial products: uncap after use for a period of time , take out the basket filter, once wash can restore as new. Therefore, widely applied in the petroleum, chemical, pharmaceutical, food industry etc ,get the user's deeply favour.
Technical parameters:
|
housing's materials
|
Cast, carbon steel
|
stainless steel
|
|
Material of filter mess
|
stainless steel
|
|
Seal material
|
Oil resistant asbestos, soft graphite,PTFE
|
|
working temperature(°c)
|
-30 - + 380
|
-80 - + 450
|
|
Pressure(mpa)
|
0.6 – 6.4 (150lb~300lb)
|
|
Filtration precision
|
10-300
|
|
Connection way
|
Flange, butt weld
|
High basket filter configuration dimensions mm :
|
Nominal diameter DN
|
Main dimension
|
Floss hole”B”
|
RE.weight
|
|
Ø
|
L
|
H 1
|
H 2
|
H 3
|
H(Remove strainer distance)
|
|
25
|
76
|
220
|
110
|
70
|
280
|
480
|
R1/2
|
15
|
|
32
|
76
|
220
|
110
|
70
|
285
|
495
|
19
|
|
40
|
114
|
280
|
120
|
100
|
340
|
550
|
24
|
|
50
|
114
|
280
|
120
|
100
|
340
|
550
|
29
|
|
65
|
140
|
330
|
160
|
110
|
400
|
650
|
40
|
|
80
|
168
|
340
|
180
|
140
|
460
|
740
|
55
|
|
100
|
219
|
420
|
220
|
170
|
550
|
880
|
R3/4
|
103
|
|
150
|
273
|
500
|
310
|
220
|
720
|
1175
|
181
|
|
200
|
325
|
560
|
390
|
280
|
900
|
1875
|
303
|
|
250
|
426
|
660
|
480
|
320
|
1070
|
2170
|
439
|
|
300
|
478
|
750
|
640
|
400
|
1360
|
2690
|
625
|
