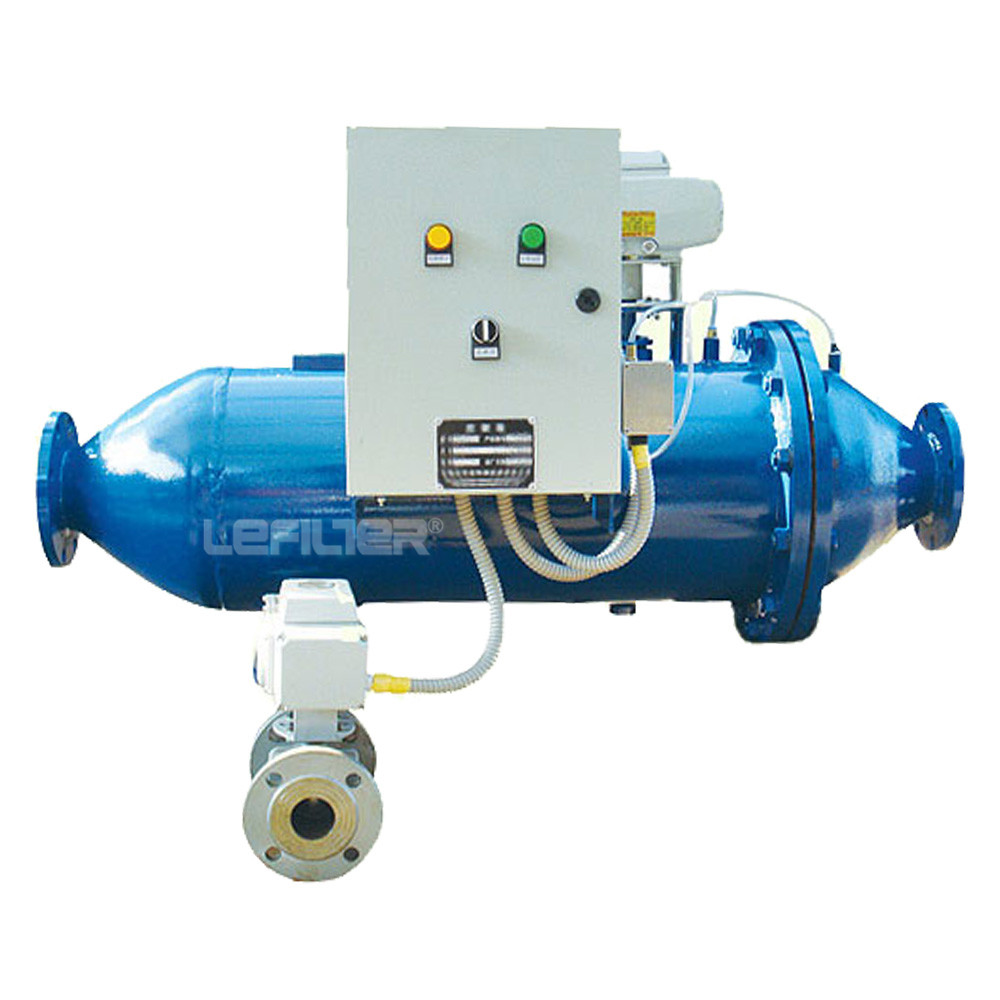

The PLC control water filter cartridge is used to remove all kinds of sticky substances, particles, sediment and other machine inspection wastes in the water, so as to ensure the safety and reliability of the paper tying equipment.
Scope of application
1. In the heating system, the hot water circulation system is used to supply slow and hot water.
2. Central air conditioning, chiller, chiller cooling and refrigeration circulating water system.
3. Industrial and civil cooling water, industrial cooling circulating water system.
4. Using geothermal water for bathing, heating circulation system, etc.
Product features
1. Stainless steel filter cartridge is used for mesh drum, and impurities can be mixed out instantaneously and evenly under the impact of negative water pressure during backwash cleaning.
2. On line cleaning without shutdown.
Technical parameters
1. Automatic backwash filter treatment effect and over-current accuracy; Filter efficiency can be selected according to user's requirement; 80% ~ 99% force loss; ≤ 0.015MPa
2. Working pressure of inlet water quality of automatic backwash filter: ≤ 1.0MPa, working temperature: 1 ℃ ~ 100 ℃, working environment temperature: 1 ℃ - 50 ℃
Installation precautions
1. The equipment shall be installed by bypass, so that the equipment can be overhauled and maintained without accident.
2. The equipment can be installed horizontally or vertically according to the site conditions. The equipment must be connected with the pipeline according to the direction of the water inlet and outlet. When the equipment is installed more truly, the water inlet of the equipment is on the top and the outlet is down when the water rate is installed.
3. The water inlet, water outlet and sewage outlet of the equipment shall be equipped with guide valve (the sewage holding valve shall be quick valve).
4. The clear distance between equipments shall not be less than 1500mm; The net distance of equipment increment shall not be less than 1000mm; There should be no less than 500mm maintenance space between the equipment and the surrounding area.
5. On the inlet and outlet pipes of the equipment, the pipe support shall be set near the pipe orifice; The support should be set under the valve which is directly connected with the vessel nozzle and is greater than or equal to dn 150.
The Industrial water filtration equipment is made of 304 or 316L stainless Steel. With the advantages of light-weight, easy to use, large filter area, high filtering speed and non-clogging, it is widely used in pre-treatment and filtration.
