Air chamber Pulse Bag Dust Collector Introduction Working principle Structural features Technical parameter Product details Cases

Introduction

Air chamber Pulse Bag Dust Collector lefilter

Air chamber Pulse Bag Dust Collector

Air chamber Pulse Bag Dust Collector has the advantages of collecting and sub-chamber back-flushing and jet-pulsing dust collectors. It overcomes the shortcomings of insufficient kinetic energy strength during sub-chamber back-flushing and simultaneous injection and pulse cleaning and filtration, thus enhancing the adaptability to use. It can not only be used as a crusher, dryer, coal mill, raw meal mill, cement mill, packaging machine and the dust collection equipment at the top of each warehouse, but also can be directly used as a dust collector. High outlet concentration vertical mill (500g/Nm3) . Process dust collection of O-Sepa separator (1000g/Nm3).

application It can be used as dust collection equipment for crusher, dryer, coal mill, raw material mill, cement mill
Filter media air particles, smoke pollution, ultra-fine dust air, etc.
Email overseas@lefilter.com

Working principle

When the dust-laden flue gas enters the ash hopper from the air inlet, a part of the coarse dust particles fall into the ash hopper due to inertial collision, natural settlement and other principles. , the dust particles are retained outside the filter bag, and the purified flue gas enters the box from the inside of the filter bag, and then is discharged into the atmosphere through the valve plate hole and the air outlet to achieve the purpose of dust collection and purification. When the resistance is increased to the preset value (1245-1470Pa), the cleaning controller generates a signal, and firstly controls the lifting The valve closes the valve plate hole, cuts off the flow of filtered flue gas, stops the filtering process, and then opens the electromagnetic pulse valve to blow compressed air with a pressure of 0.5-0.7MPa in a very short time (0.1-0.15S). The box body expands rapidly, and when it pours into the inside of the filter bag, the filter bag will be deformed and vibrated. With the effect of reverse airflow, the dust outside the filter bag will be removed and fall into the ash hopper. After the ash cleaning is completed, the lift valve will be opened again. , the dust collector enters the filtering state again.

The above working principle only represents the situation of one working room. In fact, the air box pulse dust collector is composed of multiple working rooms. When cleaning the dust, each working room is carried out in sequence. The process is the offline cleaning of the chamber. The advantage is that the cleaning room and the filtering studio do not interfere with each other, which realizes continuous operation and improves work efficiency.


Air chamber Pulse Bag Dust Collector working principle

Advantage

  • Air chamber Pulse Bag Dust Collector advantage

    Bag-type dust collector;
    and equipped with pillars, ladders, railings, air system, dust removal control system, etc.

    structure

    Simple structure:

    The main body is composed of four parts: box body, bag room, ash hopper and air inlet and outlet.

  • Air chamber Pulse Bag Dust Collector advantage

    The top of the box is made with a 1.5" slope to prevent water accumulation when used outdoors

    cabinet

    Small size:

    here is a manhole inspection door on the top, and the installation and replacement of filter bags and bag cages are all carried out here, which is very convenient

  • Air chamber Pulse Bag Dust Collector advantage

    The bag room is in the lower part of the box, mainly used to accommodate the bag cage and the bag cage, and form a filter space

    bag

    Good sealing performance:

    According to different specifications, it is divided into several chambers and separated by steel plates to prevent mutual interference between the chambers during cleaning.

  • Air chamber Pulse Bag Dust Collector advantage

    There are air-locking devices such as rotary unloader or flap valve at the outlet, which can continuously discharge ash.

    Hopper

    Good cleaning effect:

    in addition to storing the collected dust, it is also used as an intake manifold (lower intake type)

Technical parameter

PPCS32、PPCS64 model PPCS96 model PPCS128 model
Model Number PPCS 32-3 PPCS32-4 PPCS32-5 PPCS32-6 PPCS64-4 PPCS64-5 PPCS64-6 PPCS64-7 PPCS64-8
Air volume (m³/h) 5600 6900 8930 11160 13390 17800 22300 26700 31200
Filter wind speed (m/min) < 1.0（根据不同的扬尘点选取不同的过滤风速）
Total Filtration area (㎡) 93 124 155 186 248 310 372 434 496
Net Filtration area (㎡) 62 93 124 155 186 248 310 372 434
Number of dust collector chambers (pcs) 3 4 5 6 4 5 6 7 8
Total number of filter bag (pcs) 96 128 160 192 126 320 384 448 512
Dust collector resistance (Pa) 1470-1770
Inlet gas dust concentration (g/Nm3) <200 <1000
Dust concentration in outlet gas (g/Nm 3 ) <0.1
The dust collector is under negative pressure (Pa) 5000
Compressed air for cleaning Pressure (Pa) (5-7)×10 5
gas consumption
(Nm 3 /min)3 /min）		 0.27 0.37 0.46 0.55 1.2 1.5 1.8 2.1 2.4
Electromagnetic pulse valve Qty.(pcs) 3 4 5 6 4 5 6 7 8
Size(inches) 1 1/2 2 1/2
poppet valve with cylinder Qty.(pcs) 3 4 5 6 4 5 6 7 8
Size(mm) poppet diameter Φ460 cylinder diameter Φ100 poppet diameter Φ560 cylinder diameter Φ100
Rigid Impeller Feeder the feeding port Φ300mm,100 height,30.31r/min in speed, geared motor power 1.1KW, output 24m3/h
screw conveyor specification diameter Φ300 output 300m3/h
reducer Mode XWD2.2-5-1/43 Power 2.2KW
air delivery chute If the dust concentration at the air inlet is greater than 700g/m3, the ash discharge system should use a larger screw conveyor and air chute
Cleaning controller The input and output voltages are both 220V, the controller is supplied by the manufacturer, please refer to the manual for details
Filter bag specifications and materials Φ130x2450; polyester needle-punched felt 450g/㎡, use temperature 120℃
Insulation layer area ㎡ 26.5 34 41 48.5 70 94 118 142 166
Dimensions (mm) 1962×1630
×6525 		2622×11630
×7209 		3282×1630
×7675 		3942×1630
×8250 		4877×2388
×7190 		6096×2388
×7190 		7316×2388
×7190 		8534×2388
×7190 		9754×2388
×7190
Equipment weight (without insulation layer) 2900 3900 4900 5900 7400 8800 10200 11600 13000

Note: 1. The net filter area in the table is the filter area when one chamber is cleaned.
2. The gas consumption in the table refers to the centralized gas supply in the factory. For example, when a separate air compressor is set, the gas consumption in the table is multiplied by 1.3.
3. The treated air volume in the table is calculated when the gross filtration air speed is 1.2m/min, and is only for user reference.

Model Number PPCS96-4 PPCS96-5 PPCS96-6 PPCS96-7 PPCS96-8 PPCS96-9 PPCS96
-2×5 		PPCS96
-2×6 		PPCS96
-2×7 		PPCS96
-2×8 		PPCS96
-2×9 		PPCS96
-2×10
Air volume (m³/h) 22300 26800 33400 40100 46800 53510 60100 66900 80700 94100 107600 121000
Filter wind speed (m/min) < 1.0（根据不同的扬尘点选取不同的过滤风速）
Total Filtration area (㎡) 372 465 557 650 744 836 929 1121 1308 1494 1681 1868
Net Filtration area (㎡) 279 372 465 557 657 744 836 1028 1215 1401 1588 1775
Number of dust collector chambers (pcs) 4 5 6 7 8 9 10 12 14 16 18 20
Total number of filter bag (pcs) 384 480 576 672 768 864 960 1152 1344 1536 1728 1920
Dust collector resistance (Pa) 1470-1770
Inlet gas dust concentration (g/Nm³) <1300
Dust concentration in outlet gas(g/Nm³) <0.1
The dust collector is under negative pressure (Pa) 5000
Compressed air for cleaning Pressure (Pa) (5-7)×10 5
gas consumption (Nm³ /min) 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.4 4.2 4.8 5.4 6.0
Electromagnetic pulse valve Qty.(pcs) 4 5 6 7 8 9 10 12 14 16 18 20
Size(inches) 2 1/2
poppet valve with cylinde Qty.(pcs) 4 5 6 7 8 9 10 12 14 16 18 20
Size(mm) 提升阀板直径 Φ725、汽缸直径 Φ100
Rigid Impeller Feeder 下料口 400×400，转速 22.5r/min、功率 1.5KW、产量 40m3/h、一台 下料口 400×400，转速 22.5r/min、功率 1.5KW、产量 40m3/h、两台
screw conveyor specification Φ400 产量 38 m3/h、一台 Φ300 产量 21 m3/h、两台
reducer 型号 XWD5.5-7-1/59 功率 5.5KW 型号 XWD2.2-5-1/43 功率 2.2KW
air delivery chute If the dust concentration at the air inlet is greater than 700g/m3, the ash discharge system should use a larger screw conveyor and air chute
Cleaning controller The input and output voltages are both 220V, the controller is supplied by the manufacturer, please refer to the manual for details
Filter bag specifications and materials Φ130×2450；polyester needle-punched felt 450g/ ㎡ , use temperature 120 0 C
Insulation layer area (㎡) 125 196 205 223 247 262 277 292 307 322 337 352
Dimensions (mm) 20100 26400 28900 36600 43900 50000 55400 60000 65400 72000 78000 84000
Model Number PPCS1288 PPCS128
-9 		PPCS128
-10 		PPCS128
-2×6 		PPCS128
-2×7 		PPCS128
-2×8 		PPCS128
-2×9 		PPCS128
-2×10 		PPCS128
-2×11 		PPCS128
-2×12 		PPCS128
-2×13 		PPCS128
-2×14
Air volume (m³/h) 67300 100900 112100 134600 157000 179400 201900 224300 247600 269100 291600 314000
Filter wind speed (m/min) < 1.0（select different filter wind speeds according to different dust points）
Total Filtration area (㎡) 1024 1402 1558 1869 2181 2492 2804 3115 3427 3738 4050 4361
Net Filtration area (㎡) 896 1246 1402 1713 2025 2336 2648 2959 3271 3582 3804 4205
Number of dust collector chambers (pcs) 8 9 10 12 14 16 18 20 22 24 26 28
Total number of filter bag (pcs) 896 1152 1280 1536 1792 2084 2304 2560 2816 3072 3328 3584
Dust collector resistance (Pa) 1470-1770
Inlet gas dust concentration (g/Nm3) <1300
Dust concentration in outlet gas (g/Nm 3 ) <0.1
The dust collector is under negative pressure (Pa) 5000
Compressed air for cleaning Pressure (Pa) (5-7)×10 5
gas consumption (Nm 3 /min) 3.6 5.4 6.0 7.0 8.3 9.5 10.7 12 13.1 14.3 16.7 18
Electromagnetic pulse valve Qty.(pcs) 12 18 20 24 28 32 36 40 44 48 52 56
Size(inches) 2 1/2
poppet valve with cylinder Qty.(pcs) 6 9 10 12 14 16 18 20 22 24 26 28
Size(mm) Poppet diameter Φ725, cylinder diameter Φ100
Rigid Impeller Feeder The feed opening 400×400，Rotating speed 22.5r/min、power 1.5KW、 output 40m3/h、one The feed opening 400×400，Rotating speed 22.5r/min、power 1.5KW、 output 40m3/h、two
screw conveyor specification Φ400 output 38 m3/h、one Φ300 output 21 m3/h、two
reducer Model XWD5.5-7-1/59 Power 5.5KW Model XWD2.2-5-1/43 Power 2.2KW
air delivery chute If the dust concentration at the air inlet is greater than 700g/m3, the ash discharge system should use a larger screw conveyor and air chute
Cleaning controller The input and output voltages are both 220V, the controller is supplied by the manufacturer, please refer to the manual for details
Filter bag specifications and materials Φ130×2450；polyester needle-punched felt 450g/ ㎡ , use temperature 120 0 C
Insulation layer area ㎡ 110 120 130 140 150 160 175 210 245 280 315 350
Dimensions (mm) 9210 10600 12900 14600 16200 18200 21500 25700 29900 34100 28300 42500

Product details

Cases

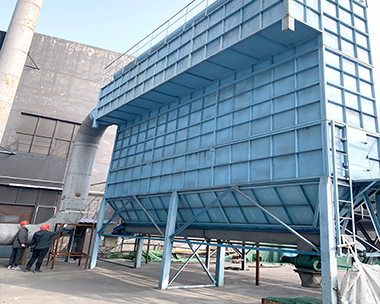

  • Installation site of a steel plant
    Installation site of a steel plant in Hubei

    Product: Baghouse Dust CollectorPurpose: to improve the working environment

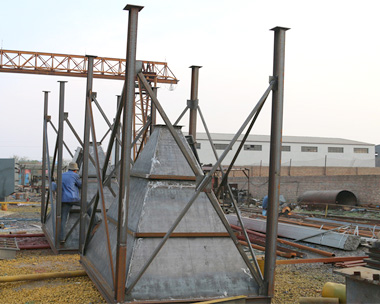

  • Installation site of a cement plant
    Installation site of a cement plant in Henan

    Product: Baghouse Dust CollectorUses: to meet environmental standards

  • mine machinery crushing equipment
    Shaanxi mine machinery crushing equipment

    Product: Baghouse Dust CollectorApplication: Dust and noise reduction
