DFB series high pressure plate filter Production introduction Performance and characteristics Technical parameters Connection size Production field Cases

Production introduction

DFB series high pressure plate filter lefilter

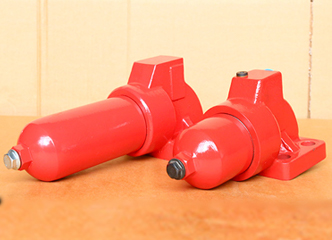

DFB series high pressure plate filter

The high-pressure plate filter can be directly installed on the valve block of the system to further remove or block impurities caused by external intrusion or wear of components during operation.It is especially suitable for automatic control system and servo system.It can prevent high-precision control elements and executive elements from being prematurely worn or stuck due to pollution,so as to reduce faults and prolong the service life of elements.The filter is equipped with a differential pressure transmitter.When the filter element is polluted and blocked until the differential pressure at the inlet and outlet is 0.5MPa,it will send a signal that the filter element should be cleaned or replaced to ensure the installation of the system.

Application widely used in hydraulic systems such as heavy machinery,mining machinery and metallurgical machinery.
Filter medium water and ethylene glycol in hydraulic oil
Email overseas@lefilter.com

Performance and Characteristics

Compared with the traditional filter,the filter has the characteristics of compact installation structure and small volume,and the filter element adopts imported glass fiber filter material,which has the advantages of high filtration precision,strong oil passing capacity, small original pressure and large pollutant holding capacity.The filtration accuracy is calibrated with absolute filtration accuracy,and its filtration ratio β 3,5,10,20≥200,filtration efficiency n≥99.5%.Comply with ISO standards.

Technical Parameters

model drift diameter
(mm)		 Flow rate
(L/min)		 filtration accuracy
(μm)		 nominal pressure
(MPa)		 pressure loss
(MPa)		 transmitter power
(V/W)		 filter element model oil inlet and outlet
O-ring
Initial Max.
DFB-H30 x *C 16 30 3
5
10
20
30 		32 <=0.01 0.5 220V/50W LH0030D*BN3HC 24x2.4
DFB-H60 x *C 20 60 LH0060D*BN3HC 32x3.1
DFB-H110 x *C 110 LH0110D*BN3HC
DFB-H160 x *C 32 160 LH0160D*BN3HC 40x3.1
DFB-H240 x *C 240 LH0240D*BN3HC
DFB-H330 X *C 330 LH0330D*BN3HC
DFB-H500 X *C 500 LH0500D*BN3HC
DFB-H660 X *C 660 LH0660D*BN3HC

Connection Size

DFB series high pressure plate filter connection Size DFB series high pressure plate filter connection Size
Model Size (mm)
Φd1 Φd2 Φd3 Φd4 b b1 b2 b3 h1 h2 h3 h4 h5 h6 h7
DFB-H30x*C 67 54 12 16 18 80 57 94 210 75 76 45 15.5 28 30.5
DFB-H60x*C 92 73 18 20 20 110 72 115 240 75 94 55 19.5 35 34.5
DFB-H110x*C 92 73 18 20 20 110 72 115 309 75 94 55 19.5 35 34.5
DFB-H160x*C 124 102 22 32 30 140 95 153 293 85 110 60 25 52 31
DFB-H240x*C 124 102 22 32 30 140 95 153 351 85 110 60 25 52 31
DFB-H330x*C 170 146 22 32 30 140 95 172 372 115 110 58 26 52 32
DFB-H500x*C 170 146 22 32 30 140 95 172 454 115 110 58 26 52 32
DFB-H660x*C 170 146 22 32 30 140 95 172 528 115 110 58 26 52 32

Production Field

  • product

  • video

  • DFB series high pressure plate filter lefilter DFB series high pressure plate filter lefilter DFB series high pressure plate filter lefilter DFB series high pressure plate filter lefilter DFB series high pressure plate filter lefilter

Case Site

  • double druml oil filtration site
    double druml oil filtration site

    function:hydraulic oil filtrationrate of flow:1000t/h

  • pressure pipeline filtration site
    pressure pipeline filtration site

    function:hydraulic oil filtrationrate of flow:200t/h

  • machining filtration site
    machining filtration site

    function: oil filtratiionrate of flow:100t/h
