Production Introduction

TFA series oil suction filter lefilter

TFA series oil suction filter

The filter can only be installed on the top of the tank,and no self-sealing valve,other performance is similar to TF series.

Application widely used in hydraulic systems such as heavy machinery,mining machinery and metallurgical machinery.
Filter medium water and ethylene glycol in hydraulic oil
Email overseas@lefilter.com

Performance and Characteristics

1、Easy installation and connection,simplify the system pipeline.
The filter can be directly installed on the top,side or bottom of the tank,filter cylinder immersed in the tank below the liquid level,while filter head exposed outside the tank.The self sealing valve and other devices are set in the filter to save the installation of stop valve and other pipe fittings,so as to simplify the pipeline and facilitate installation.The oil outlet can be connected by pipe or flange.

2、The self-sealing valve is set to make it very convenient to replace or clean the filter element or maintain the system.
When replacing or cleaning filter element or maintaining the system,just unscrew the filter cover (cleaning cover),at this time the self-sealing valve will automatically close,isolated oil tank,so that the oil tank will not flow out of the tank,so that cleaning,replacing the filter element or maintenance system is very convenient.If the self-sealing valve is jacked,it can be used to drain oil from the oil tank.

3、3、With filter element pollution transmitter and oil circuit by-pass valve,the reliability of hydraulic system is improved.
When the filter element is blocked by pollutants to the oil outlet,and the vacuum at the oil outlet is 0.018MPa,the transmitter will send a signal that it should be replaced or cleaned in time.If the machine cannot be shut down immediately or no one will replace the filter element,the oil circuit by-pass valve on the upper part of the filter element will open automatically (opening value: vacuum 0.02MPa) to avoid air suction failure of the oil pump.However,at this time,the filter element should be stopped to replace or clean,so as to maintain the cleanliness of the hydraulic system and improve the reliability of the hydraulic system.

Technical Parameters

model nominal flow rate
(L/min)		 filtration accuracy
(μm)		 Dia.
(mm)		 Iniaitl.△P
(MPa)		 transmitting device connection:tube/flange Weight
(Kg)		 Model of element
(V) (A)
TF-25×*L-C/Y 25 80
100
180		 15 <0.01 12
24
36
220 		2.5
2
1.5
0.25		 >管式
Thread		 0.4 TFX-25×*
TF-40×*L-C/Y 40 15 0.45 TFX-40×*
TF-63×*L-C/Y 63 25 0.82 TFX-63×*
TF-100×*L-C/Y 100 32 0.87 TFX-100×*
TF-160×*L-C/Y 160 40 1.75 TFX-160×*
TF-250×*F-C/Y 250 50 >Flange 2.60 TFX-250×*
TF-400×*F-C/Y 400 65 4.3 TFX-400×*
TF-630×*F-C/Y 630 90 6.2 TFX-630×*
TF-800×*F-C/Y 800 6.9 TFX-800×*
TF-1000×*F-C/Y 1000 8 TFX-1000×*
TF-1300×*F-C/Y 1300 10.4 TFX-1300×*

Note:*refers to filtration accuracy.If the medium is water-glycol,nominal flow rate is 160L/min,filtration accuracy is 80μm,with zs-i transmitter,the filter model is TF* BH-160x80L-C,and the filter element model is TFX.BH-160x80.

Connection Size

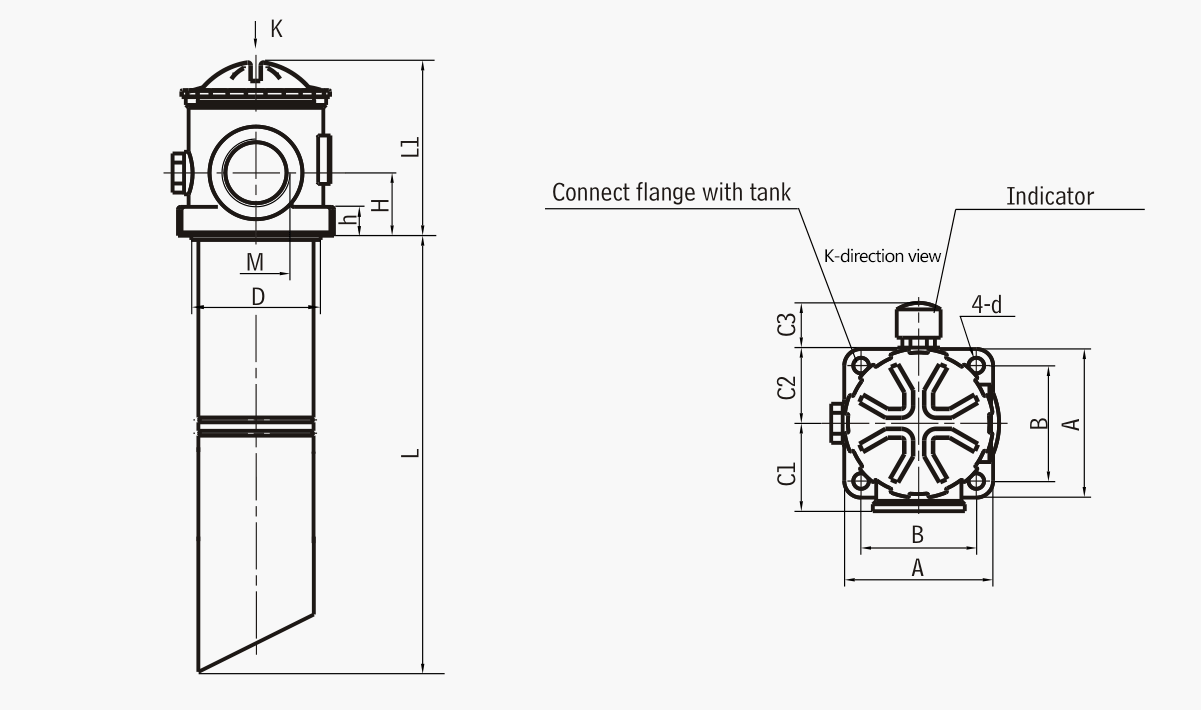

1、Threaded Connection

TFA series oil suction filter Threaded Connection

2、Flanged Connection

TFA series oil suction filter Flanged Connection

Table I、TFA-25~160 threaded connection size

Model Size (mm)
L L1 H M D A B C1 C2 C3 h d
TF-25X*L - Y/C 343 78 25 M22 × 1.5 Φ62 80 60 45 42 42 9.5 Φ9
TF-40X*L - Y/C 110 M27 × 2
TF-63X*L - Y/C 488 98 33 M33 × 2 Φ75 90 70.7 54 47 10
TF-100X*L - Y/C 538 M42 × 2
TF-160X*L - Y/C 600 119 42 M48 × 2 Φ91 105 81.3 62 53.5 12 Φ11

Table II、TFA-250~800 flanged connection size

型号
Model 		尺 寸 Size (mm)
L L1 H D1 D a b n A B C1 C2 C3 h d Q
TF-250X*L - Y/C 670 119 42 Φ50 Φ91 70 40 M10 105 81.3 72.5 53.5 42 l2 Φ11 Φ60
TF-400X*L - Y/C 725 141 50 Φ65 Φ110 90 50 125 95.5 82.5 61 15 Φ73
TF-630X*L - Y/C 825 184 65 Φ90 Φ140 120 70 160 130 100 81 15.5 Φ102
TF-800X*L - Y/C 885

Production Field

  • product picture

  • video

  • TFA series oil suction filter lefilter TFA series oil suction filter lefilter TFA series oil suction filter lefilter TFA series oil suction filter lefilter TFA series oil suction filter lefilter

Case Site

  • double druml oil filtration site
    double druml oil filtration site

    function:hydraulic oil filtrationrate of flow:1000t/h

  • pressure pipeline filtration site
    pressure pipeline filtration site

    function:hydraulic oil filtrationrate of flow:200t/h

  • machining filtration site
    machining filtration site

    function: oil filtratiionrate of flow:100t/h
