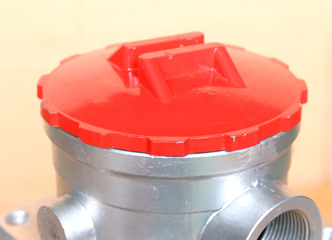

TFB series oil suction filter lefilter

TFB series oil suction filter

The filter is used for high precision oil absorption filtration in hydraulic system,and can remove the pollutants such as metal particles and colloidal substances before oil absorption,thus prolonging the service life of oil pump.

Application widely used in hydraulic systems such as heavy machinery,mining machinery and metallurgical machinery.
Filter medium water and ethylene glycol in hydraulic oil
Email overseas@lefilter.com

Performance and Characteristics

1、The filter is equipped with pollution baffle to ensure that the pollutants deposited in the filter element can be removed together with the filter element when replacing the filter element and will not pollute the oil tank.

2、The self-sealing valve can be directly installed on the top,side or bottom of the oil tank. When the filter cover needs to be repaired and opened,the self sealing valve will close automatically,so as to ensure the normal maintenance of the filter even if it is immersed below the liquid level in the oil filled oil tank.

Technical Parameters

model
Flow rate
(L/min)		 filtration accuracy
(μm)		 Interface size
(mm)		 original pressure loss
(MPa)		 Model of element
TFB* -45X* 45 10
20
30
80		 G1 1/4 <0.01 TFBX-45 X *
TFB* -70x* 70 TFBX-70 X *

Note:*is filtration accuracy.If the function code is 01,the medium is water-glycol,the nominal flow rate is 45L/min,and the filtration accuracy is 10μm,the filter model is TFB01. Bh-45 X 10,and the filter element model is TFBX.BH-45 X 10.

Connection Size

TFB series oil suction filter connection size
Model Size (mm)
B C D d min. E max. F G H K K1 L M S T
TFB* -45 G1 1/4 110 165 11 111/121 11 32 104 257 219 35 M10 76 141
TFB* -70 118 119/121 357 319

Production Field

  • product picture

  • video

  • TFB series oil suction filter lefilter TFB series oil suction filter lefilter TFB series oil suction filter lefilter TFB series oil suction filter lefilter TFB series oil suction filter lefilter

Case Site

  • double drum oil filtration site
    double drum oil filtration site

    function:hydraulic oil filtrationrate of flow:1000t/h

  • pressure pipeline filtration site
    pressure pipeline filtration site

    function:hydraulic oil filtrationrate of flow:200t/h

  • machining filtration site
    machining filtration site

    function: oil filtratiionrate of flow:100t/h
