Reverse osmosis equipment Introduction Working principle advantages Technical parameter Product details Cases

Introduction

Reverse osmosis equipment lefilter

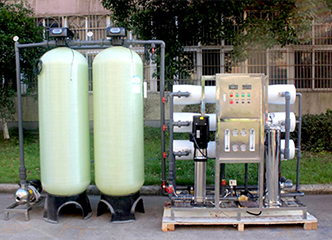

Reverse osmosis equipment

The reverse osmosis equipment is a high-quality water purification equipment,which pretreats,finely filters and softens the raw water etc.,and then pressurized by a pump,and then us the reverse osmosis membrane,which can effectively remove industrial pollutants,heavy metals,viruses,bacteria,organic matter,inorganic matter and radioactive substances in water are purified to crystal clear, sweet glycol.

Application Mainly used for reverse osmosis treatment
Filter media Industrial pollutants,heavy metals,bacteria,viruses, etc.
Email overseas@lefilter.com

Working principle

Reverse osmosis is a modern and new type of pure water treatment technology.Reverse osmosis elements are used to improve the purity of water and remove impurities and salts contained in the water.The pressure on both sides of the reverse osmosis membrane is different.By forcing the raw water to pass through the reverse osmosis membrane,the salt with a low concentration will permeate in the direction of the salt with a high concentration.The equilibrium state that can be achieved is the osmotic pressure of the liquid.When the pressure on one side of the brine contained is opposite to the osmotic pressure on the other side,flow in the opposite direction occurs,resulting in a reverse osmosis process.

Reverse osmosis equipment working principle

Advantages

  • Reverse osmosis equipment advantage

    Reverse osmosis equipment
    The desalination rate can reach 99%, the desalination rate of the primary reverse osmosis system can be stabilized above 90%, and the desalination rate.

    Features

    Adopt high-end reverse osmosis membrane,

    the desalination rate is more than 99%,automatic electronic control program,online water quality monitoring and control,stable and reliable.

  • Reverse osmosis equipment advantage

    Uses internationally advanced reverse osmosis desalination technology to make deionized water,it’s a pure physical process preparation technology.

    Structure

    High automation degree:

    Reverse osmosis equipment can work for a long time without interruption,and has the characteristics of high automation degree,convenient operation,stable effluent quality,and no pollutant discharge.

  • Reverse osmosis equipment advantage

    Using high-end reverse osmosis membrane, high desalination rate, long service life and low operating cost; using fully automatic pretreatment system.

    Saving

    Save costs:

    It reduces the cost of chemicals consumed by resin regeneration,labor costs and waste water treatment costs caused by regeneration,and reduces environmental pollution.

  • Reverse osmosis equipment advantage

    Advanced water quality testing control and sophisticated system maintenance plan ensure long-term stability of effluent quality;

    Durable

    Product Durability:

    Rack pipes and fittings are made of stainless steel and corrosion-resistant materials to ensure the durability of the system and low maintenance costs;

Technical parameter

Reverse osmosis equipment technical parameter

Filtration accuracy(μm):0.0001 Desalination rate: >99.8%

Inlet water pressure:0.2-4Mpa Water production:0.5-50(m3/H)

Raw water hardness:< 10mmol/L Water hardness:≤0.03mmol/L

Equipment Type: Engineering, Industrial, Commercial

Draft selection: single-stage reverse osmosis, double-stage reverse osmosis, stainless steel reverse osmosis

Can be customized according to different working conditions

P/N. Water production m3/H Product water salt content mg/g Recovery rate % Reference device size m
LF-TW-0.5 0.5 Incoming water 300TDS，Water production 10TDS 50%-60% 1.4*0.55*1.5
LF-TW-1 1 Incoming water 300TDS，Water production 10TDS 50%-60% 1.7*0.65*1.6
LF-TW-2 2 Incoming water 300TDS，Water production 10TDS 50%-70% 2.5*0.75*1.4(Host)
LF-TW-3 3 Incoming water 300TDS，Water production 10TDS 60%-70% 1.6*0.9*1.6(Host)
LF-TW-4 4 Incoming water 300TDS， Water production 10TDS 60%-70% 2.8*0.9*1.4(Host)
LF-TW-5 5 Incoming water 300TDS，Water production 10TDS 60%-70% 2.8*0.9*1.6(Host)
LF-TW-6 6 Incoming water 300TDS，Water production 10TDS 65%-75% 2.8*0.9*1.6(Host)
LF-TW-10 10 Incoming water 300TDS，Water production 10TDS 65%-75% 2.8*0.9*2(Host)
LF-TW-15 15 Incoming water 300TDS，Water production 10TDS 65%-75% 4*0.9*2(Host)
LF-TW-20 20 Incoming water 300TDS， Water production 10TDS 65%-75% 5*0.9*2(Host)
LF-TW-25 25 Incoming water 300TDS，Water production 10TDS 65%-75% 6*0.9*2(Host)
LF-TW-30 30 Incoming water 300TDS，Water production 10TDS 65%-75% 7*0.9*2(Host)
LF-TW-40 40 Incoming water 300TDS，Water production 10TDS 65%-75% 6*1.4*1.8(Host)
LF-TW-50 50 Incoming water 300TDS，Water production 10TDS 65%-75% 6*1.4*2(Host)

Product details

Cases

  • xxx beverage factory pure water equipment
    xxx beverage factory pure water equipment

    Application: reverse osmosis equipmentProcessing capacity: 15t/h

  • xxx energy company
    xxx energy company

    Application: reverse osmosis equipmentProcessing capacity: 10t/h

  • xxx heat company
    xxx heat company

    Application: reverse osmosis equipmentProcessing capacity: 50t/h

CUSTOMIZATION SERVICE PROCESS

Provide customization services according to different working conditions
