PP meltblown filter element Introduction Working Principle Advantages Technical parameter Details Cases

Introduction

PP meltblown filter element lefilter

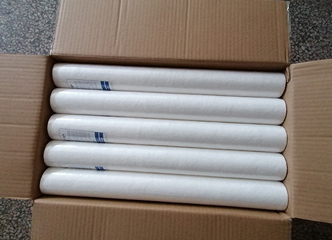

PP meltblown filter element

PP meltblown filter element is a tubular filter element made of non-toxic and odorless polypropylene particles after heating, melting, spinning, pulling and receiving forming. It is not only used in water purification in large quantities. Filtration of strong acids, alkalis and organic solvents, this filter element is a fixed-pore depth filter element with ultra-fine polypropylene fiber filter material as the filter medium, and the filter material meets the relevant FDA requirements.

Application power, reverse osmosis pre-stage, petrochemical, fine chemical, food and beverage, automobile, industry, metallurgy, papermaking, medicine, microelectronics, environmental protection water treatment and other industries.
Filter media : water suspended solids, particulate matter, water fouling, bacteria and algae, rust, etc.
Email overseas@lefilter.com

Working Principle

It mainly use activated carbon organic flocs with high carbon content, large molecular weight and large specific surface area to physically adsorb impurities in water to meet water quality requirements. When the water flows through the pores of the activated carbon, various suspended particles, organic matter, etc. are adsorbed in the pores of the activated carbon under the action of van der Waals force; at the same time, the chlorine (hypochlorous acid) adsorbed on the surface of the activated carbon undergoes a chemical reaction and becomes Chlorine ions, which effectively removes chlorine and ensures that the residual chlorine in the effluent is less than 0.1ppm, which meets the operating conditions of the RO membrane. With the passage of time, the retentate in the pores of the activated carbon gradually increases, so that the pressure difference between the front and rear of the filter increases until it fails.

PP meltblown filter element lefilter

Detail display of PP meltblown filter element

outside sparse and inside dense
three types to shoose

Advantages

  • PP meltblown filter element advantages

    stepwise progressive filtration, outer sparse and inner dense design, internal thread structure.

    filter

    stepwise progressive filtration:

    outer sparse and inner dense, ruler layered filtering, good interception effect, longer life

  • PP meltblown filter element advantages

    internal thread structure,enhanced compression resistance.

    compression

    internal thread structure for enhanced compression resistance: The internal thread structure enhances the compression resistance, and the adsorption and compression resistance are greatly improved.

  • PP meltblown filter element advantages

    PP polypropylene material

    material

    Food grade material:

    The material is healthy, safe and non-toxic, and will not cause secondary water pollution.

  • PP meltblown filter element advantages

    increase filter area

    surface

    acupuncture Surface:

    increase the filter area, increase the filter area and filter smoothly, not easy to block.

Technical parameter

PP meltblown filter element technical parameter

Name: PP meltblown filter element Specifications: Flat, Needle Punch

Size: 508mm*60mm Working pressure: 0.1-0.3Mpa

Installation location: first level Weight: about 200g

Filtration precision: 1, 3, 5, 10, 20, 30, 50μm

Customized according to different working conditions

Filtration precision(μm) 1 3 5 10 20 30 50
Initial precision(μm) 10-15 15-25 25-35 30-40 35-50 40-60 60-90
Maximum particle(μm) 15 25 35 40 50 60 90
Filter interface Flat, 226, 222, and other non-standard interfaces
Filter skeleton Polypropylene frame, stainless steel frame (special specifications can be customized)
length 5",10",20",30",40",50",60"
Outer diameter(±1mm) 60-115mm
Inner diameter(±1mm) 28.30mm
Maximum withstand voltage <=0.5MPa
Maximum pressure drop 0.2MPa

Product details

Cases

  • Circulating water treatment site of a coal chemical enterprise
    Circulating water treatment site of a coal chemical enterprise in Shanxi

    Application: security filter elementFlow:20t/h

  • The use site of an environmental company
    The use site of an environmental company in Shandong

    Application: Circulating water treatmentFlow:20t/h

  • After use by Henan Water Treatment Company
    After use by Henan Water Treatment Company

    Uses: security filter circulating water treatmentFlow:200m3/h

CUSTOMIZATION SERVICE PROCESS

Provide customization services according to different working conditions
